Water Pump: Exploded View
Water Pump: Exploded View
WARNING:
This page is about a different variant/trim than selected.

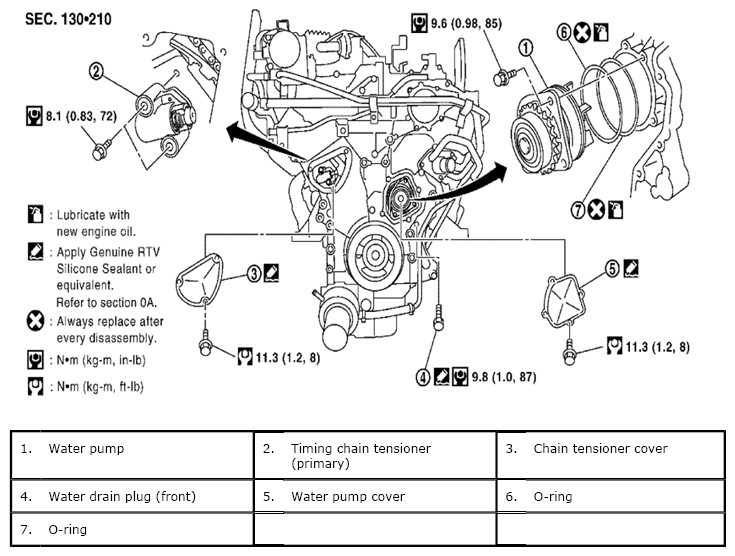

Fig 1: Exploded View Of Water Pump
Courtesy of SUZUKI OF AMERICA CORP.
