Hydraulic Line: Removal and Installation
CAUTION:
Do not reuse O-rings or copper sealing washers.
NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.

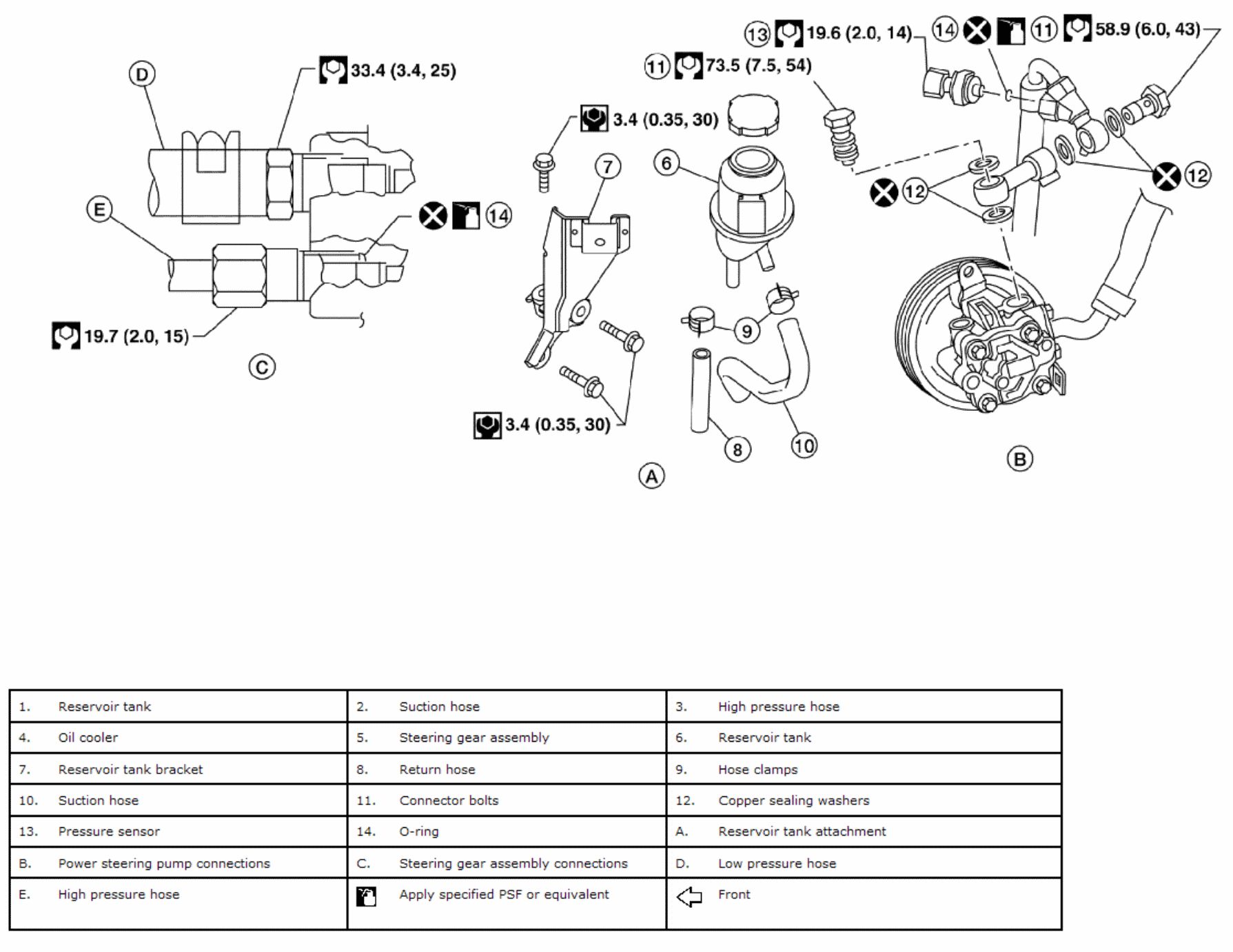

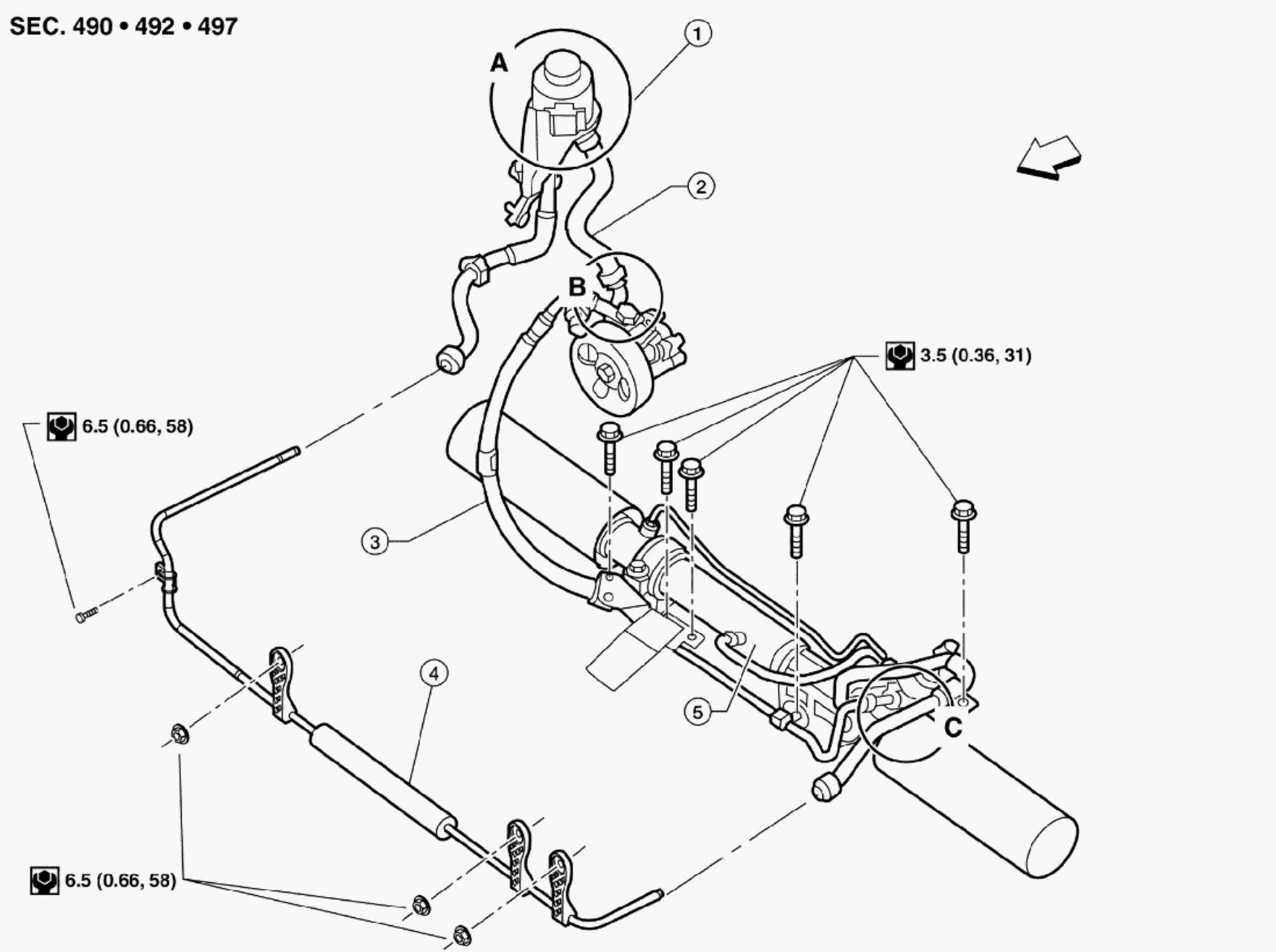

Refer to the following illustration for hydraulic line removal and installation.
