Accelerator Control System: Component

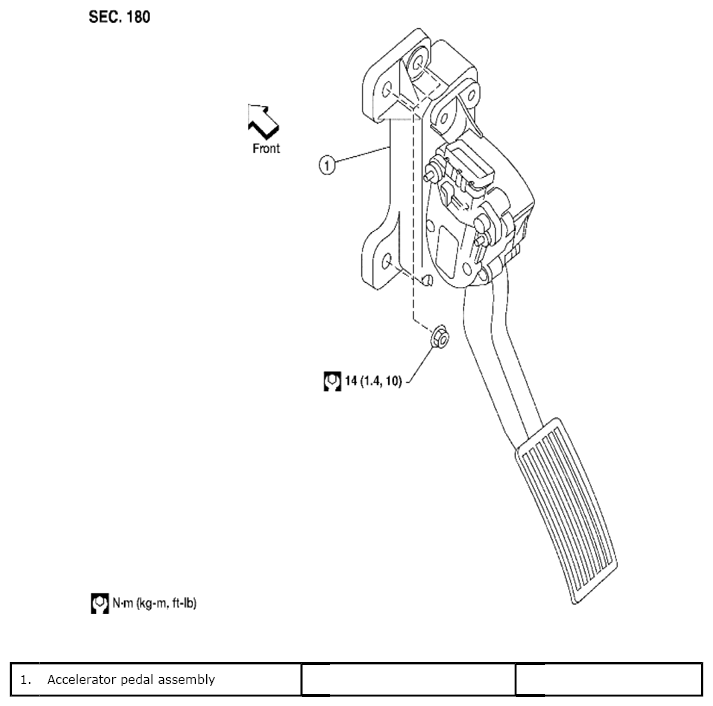

Fig 1: Accelerator Control System Replacement Components With Torque Specifications

Courtesy of SUZUKI OF AMERICA CORP.

CAUTION:

• Do not disassemble the accelerator pedal assembly.
• Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.
• Avoid damage from dropping the accelerator pedal assembly during handling.
• Keep the accelerator pedal assembly away from water.
