Equator RMZ-4
›
Repair and Diagnosis
›
Transmission
›
Transfer Case
›
Schematic and Routing Diagram
›
4WD System: System Diagram
›
Notes
4WD System: System Diagram: Notes

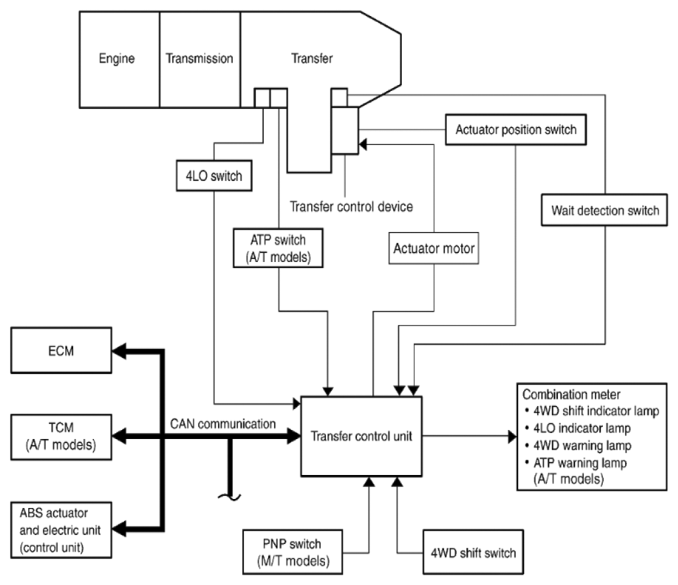

Fig 1: 4WD System - System Diagram
