CAN Communication System Transmitting and Receiving Data Table

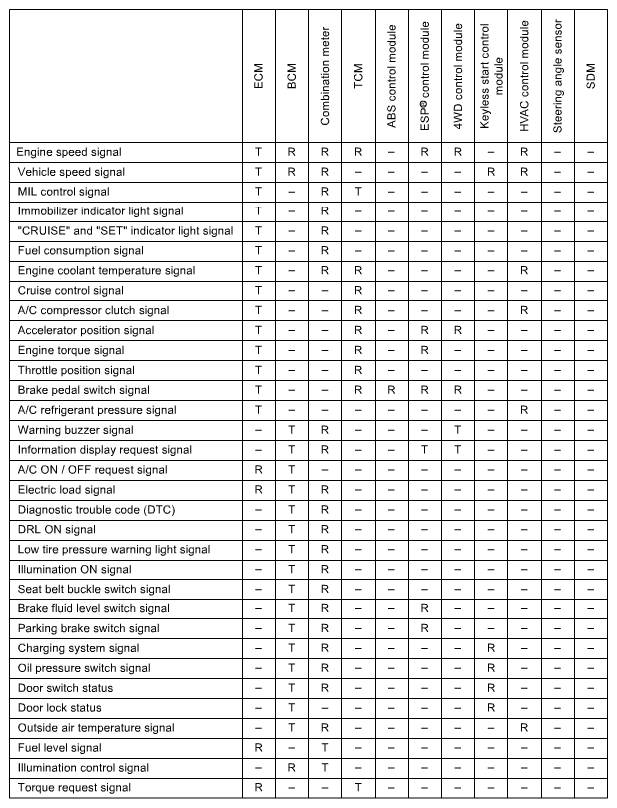

Fig 1: CAN Communication System Transmitting And Receiving Data Chart (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

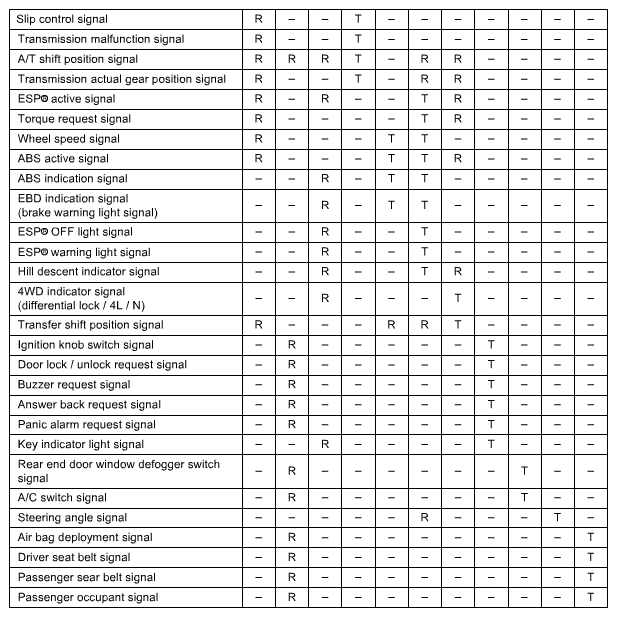

Fig 2: CAN Communication System Transmitting And Receiving Data Chart (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: T: Transmit
R: Receive
