Keyless Start System Component Location
Keyless Start System Component Location

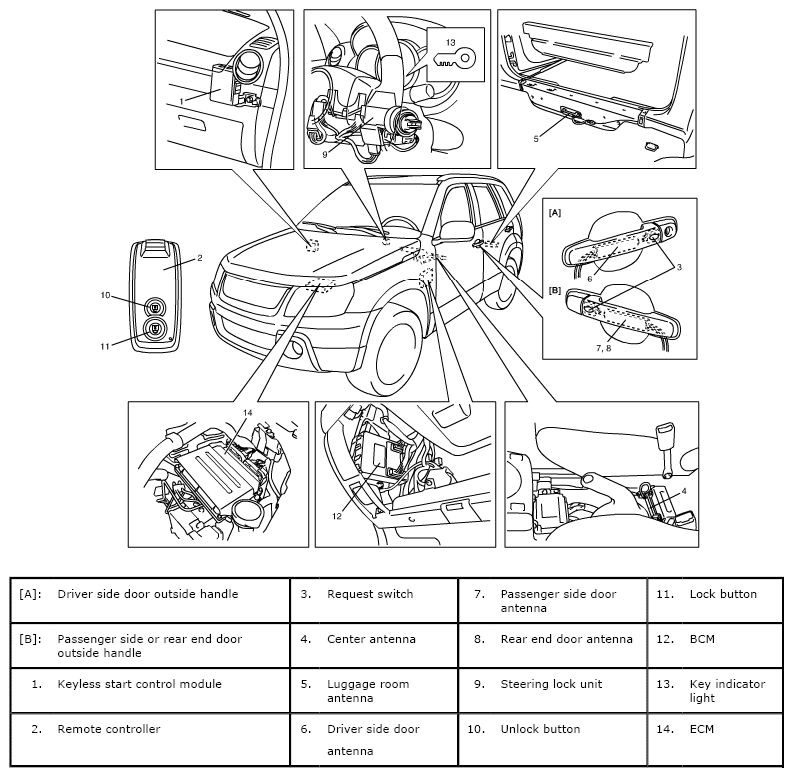

Fig 1: Identifying Keyless Start System Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
