Schematic and Routing Diagram
›
Electronic Stability Program Wiring Circuit Diagram
›
Notes
Electronic Stability Program Wiring Circuit Diagram: Notes

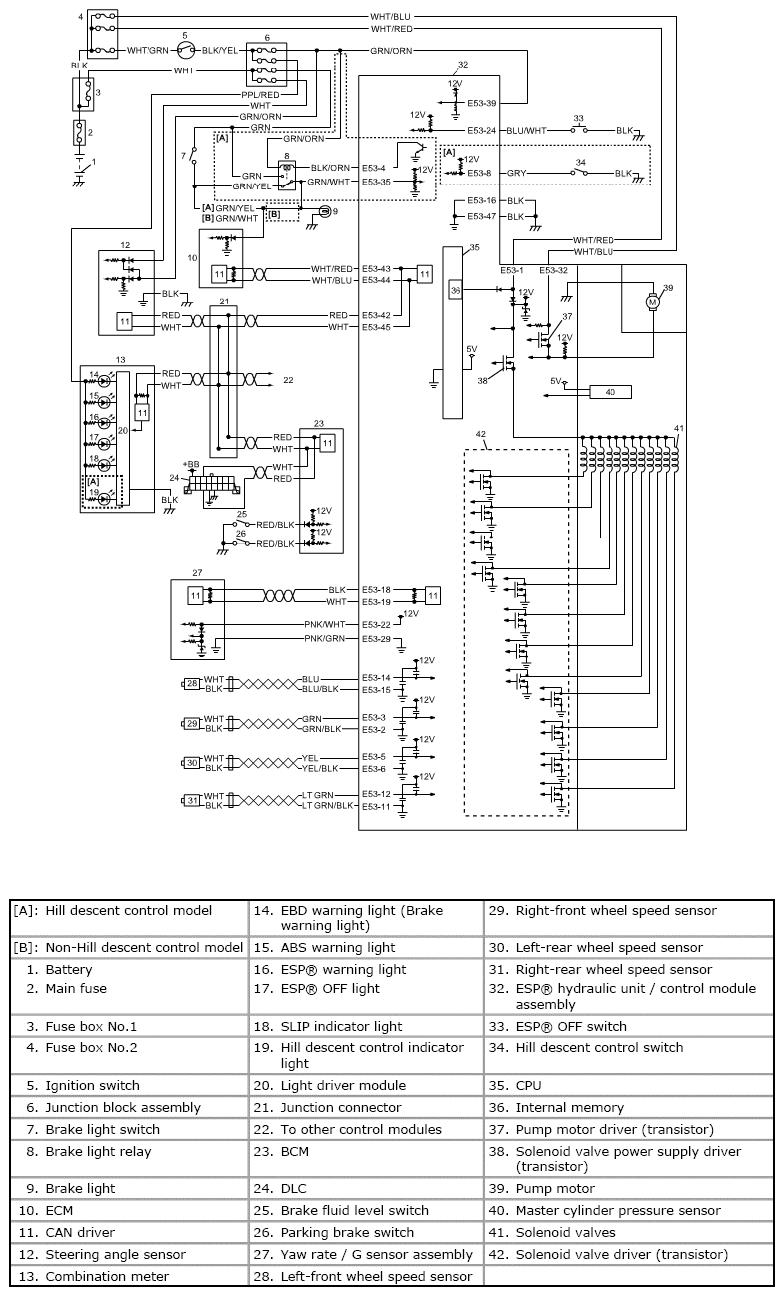

Fig 1: Electronic Stability Program Wiring Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
