Reassembling Note for Wiring Harness
›
Around Main Floor
›
Left Side
Left Side

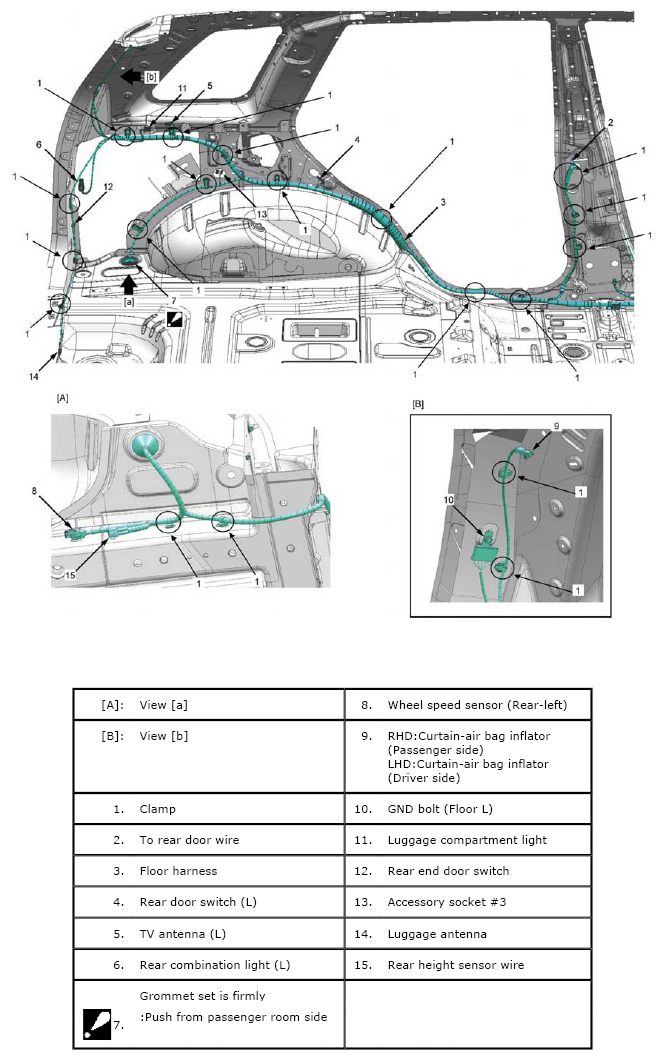

Fig 1: Identifying Floor Harness - Left Side
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
