Suzuki
›
2011
›
Grand Vitara Base
›
Repair and Diagnosis
›
Engine Performance
›
Ignition System
›
Schematic and Routing Diagram
›
Ignition System Wiring Circuit Diagram
Ignition System Wiring Circuit Diagram

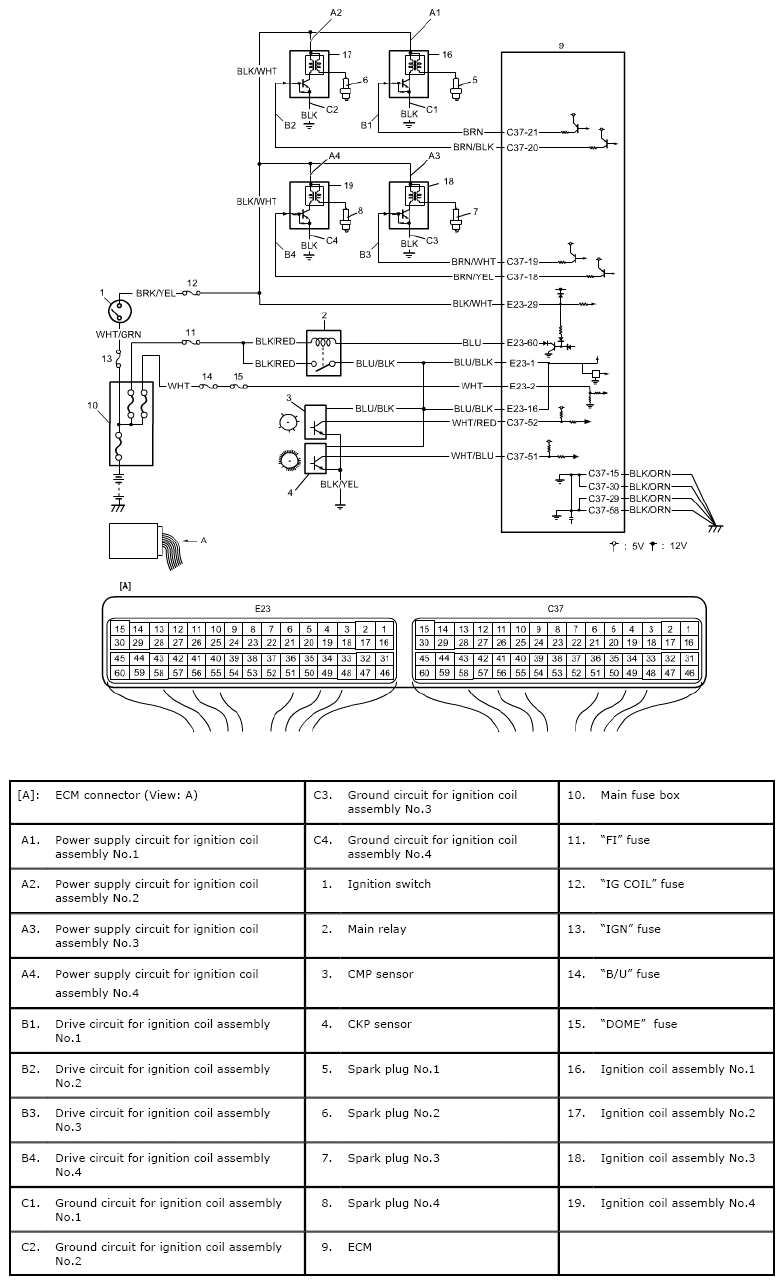

Fig 1: Ignition System Wiring Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
