Electronic Control System Component Location

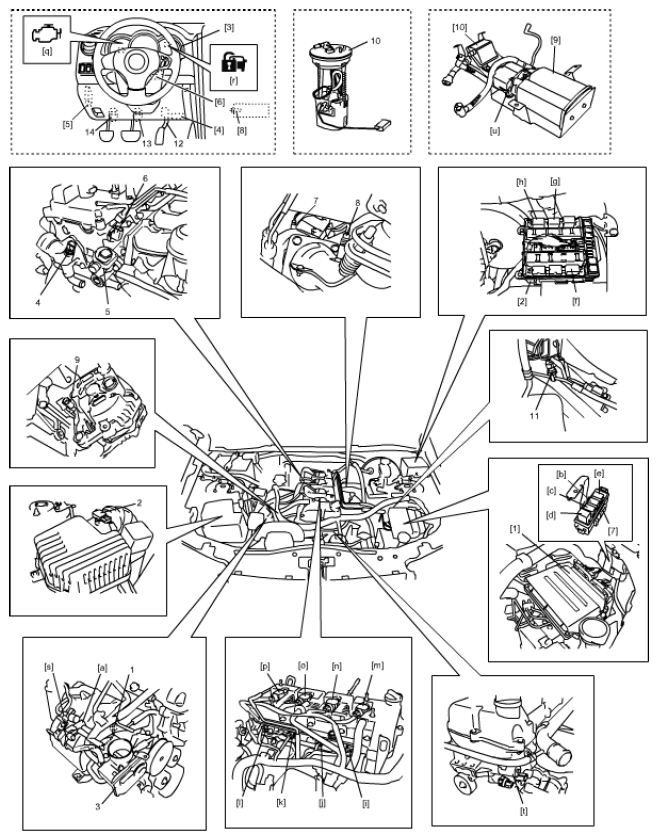

Fig 1: Identifying Electronic Control System Component Location (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

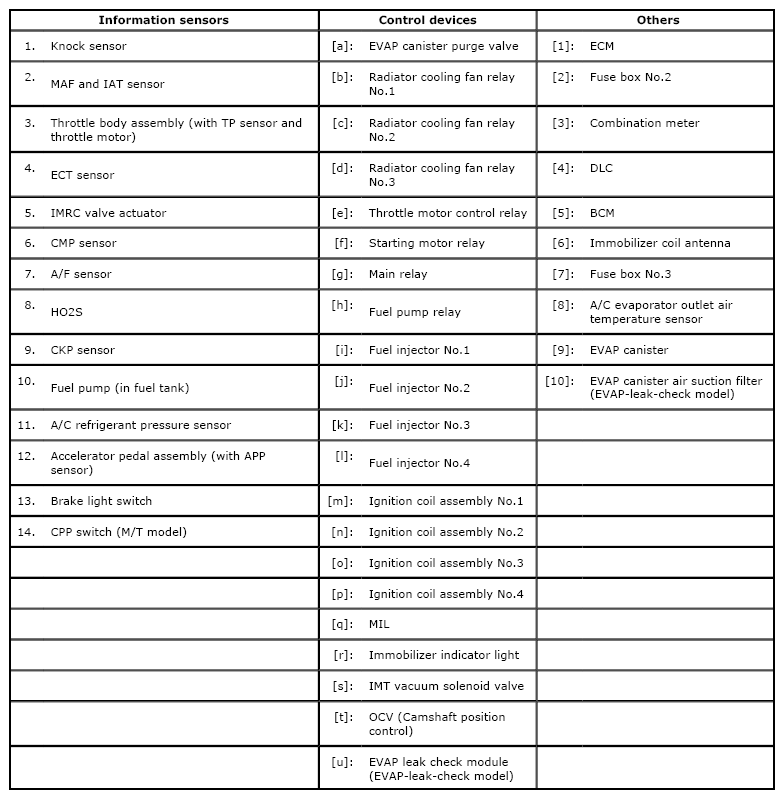

Fig 2: Identifying Electronic Control System Component Location (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
