DTC P0620: Generator Control Circuit
›
Wiring Diagram
DTC P0620: Generator Control Circuit: Wiring Diagram

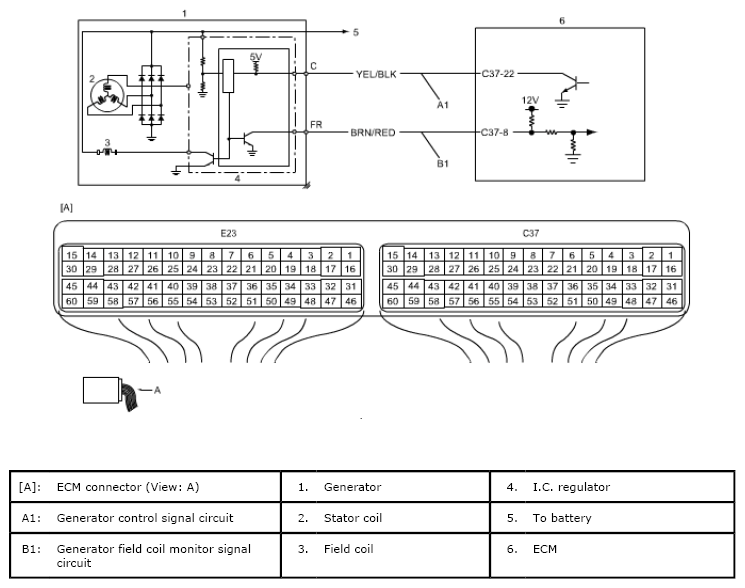

Fig 1: Generator Control - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
