Precautions for Identification of Cylinder

Four cylinders of engine are identified by number; No. 1 (1), No. 2 (2), No. 3 (3) and No. 4 (4) counted from crankshaft pulley side to flywheel side.

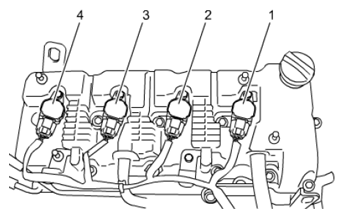

Fig 1: Identifying Cylinders
G06492330Courtesy of SUZUKI OF AMERICA CORP.
