P/S Gear Case Assembly Components
P/S Gear Case Assembly Components

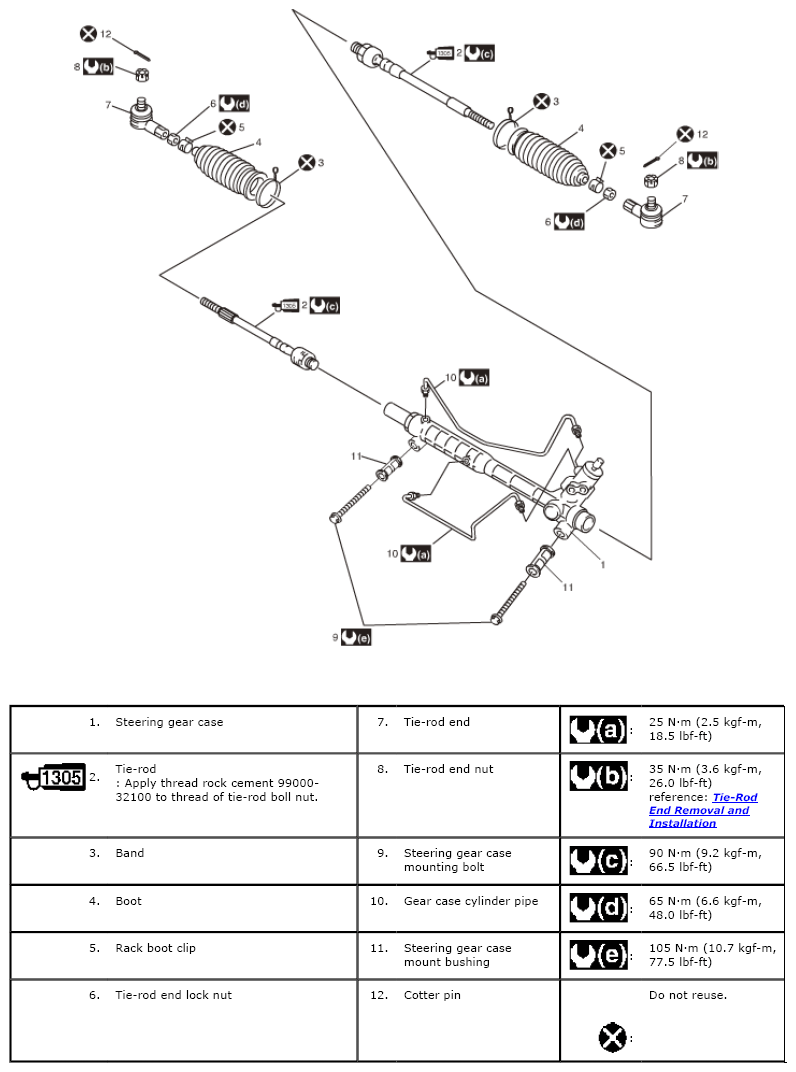

Fig 1: P/S Gear Case Assembly Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
