P/S Hose/Pipe Components

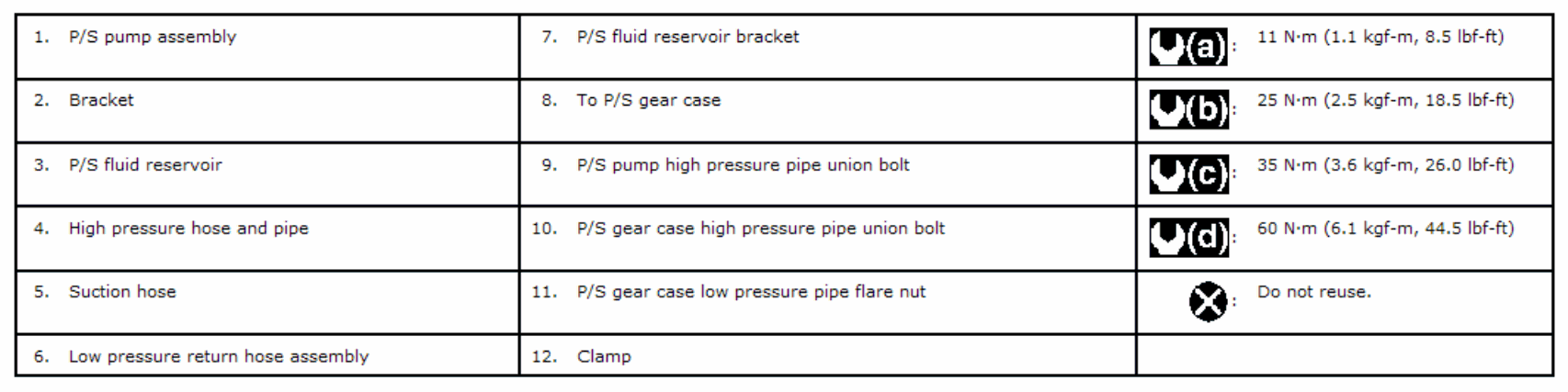

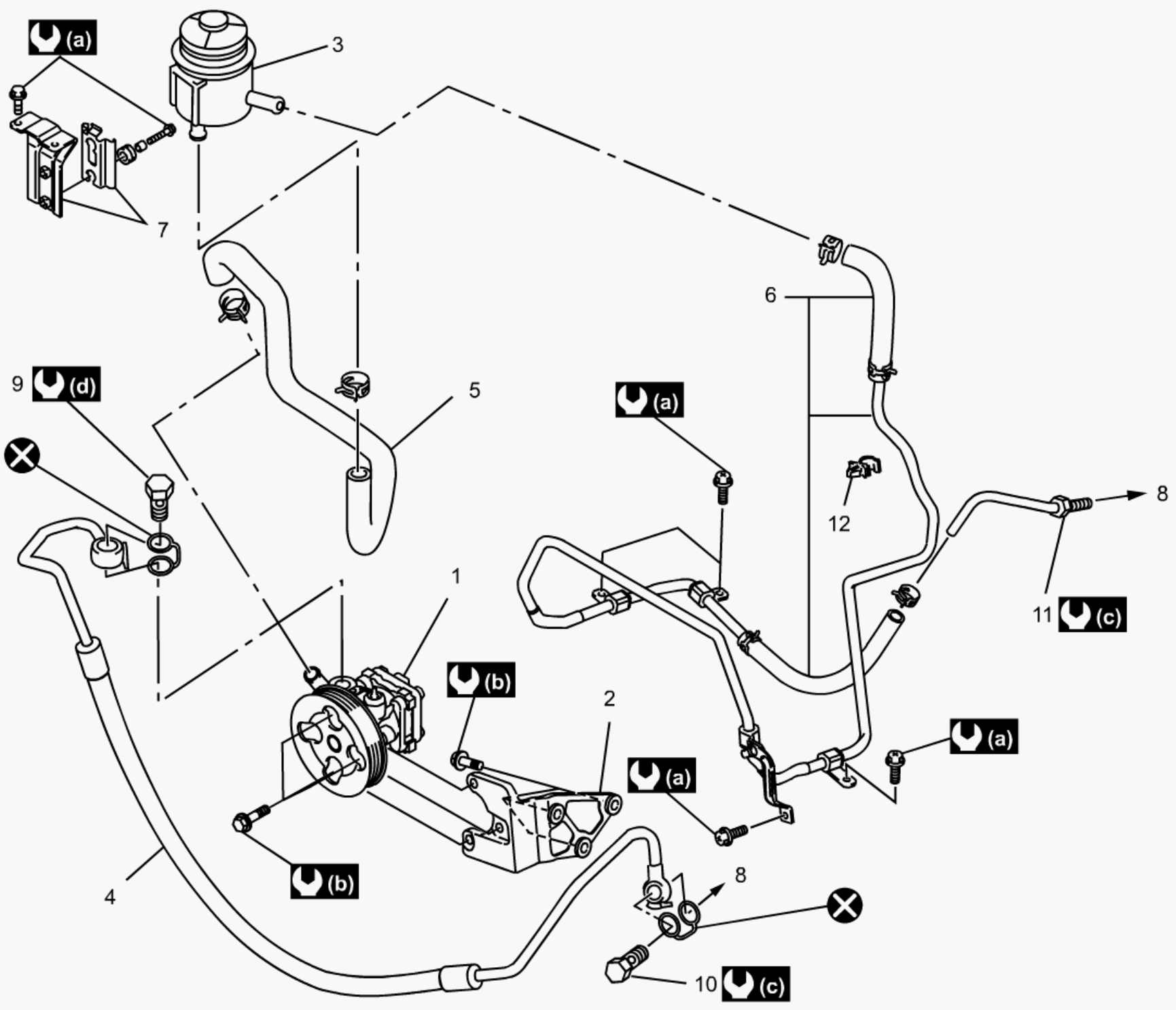

Fig 1: P/S Hose/Pipe Replacement Components With Torque Specifications (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: P/S Hose/Pipe Replacement Components With Torque Specifications (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
