P/S Pump Components
P/S Pump Components

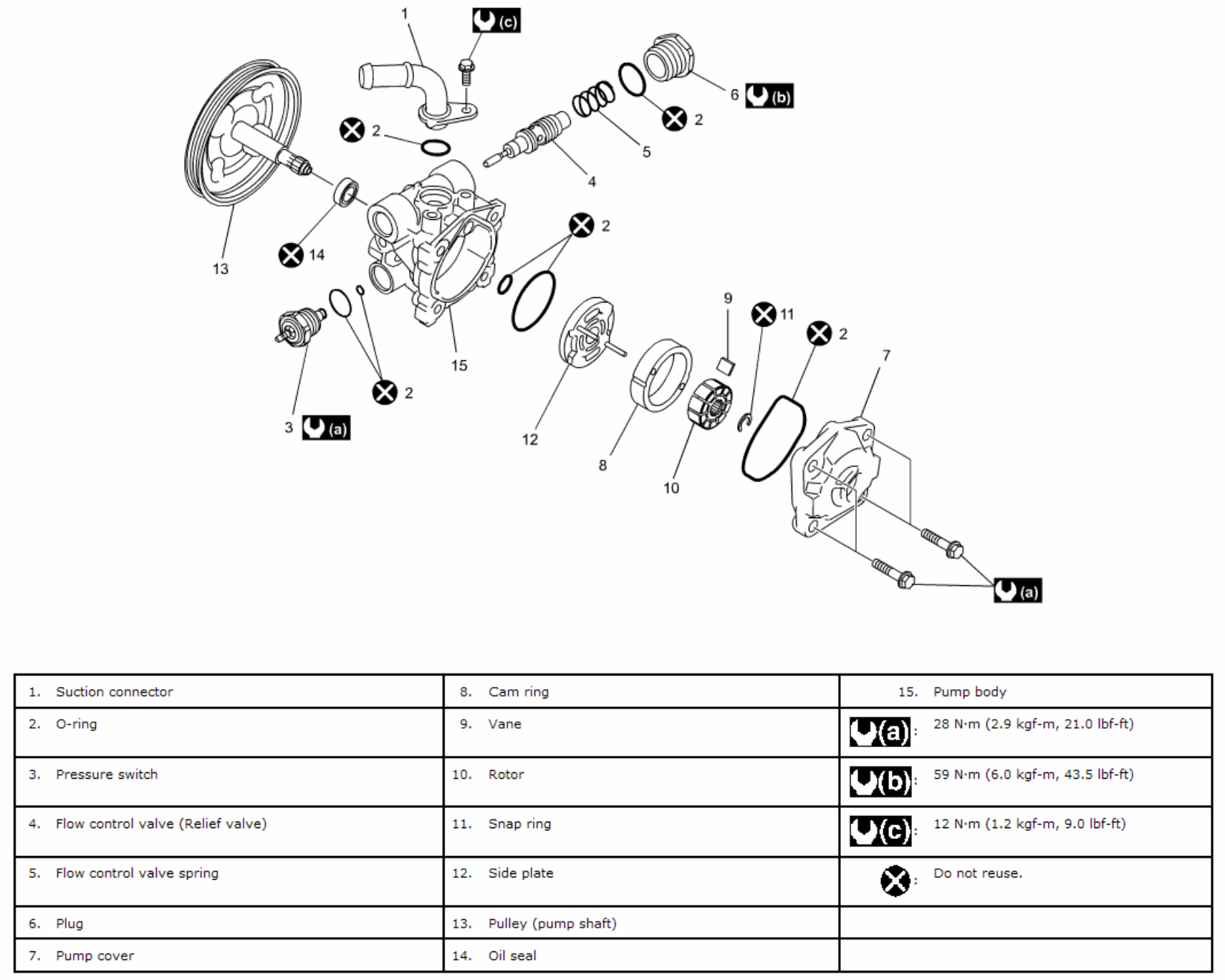

Fig 1: P/S Pump Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
