Manual Transmission
›
Repair Instructions
›
Extension Case Assembly Components
Extension Case Assembly Components

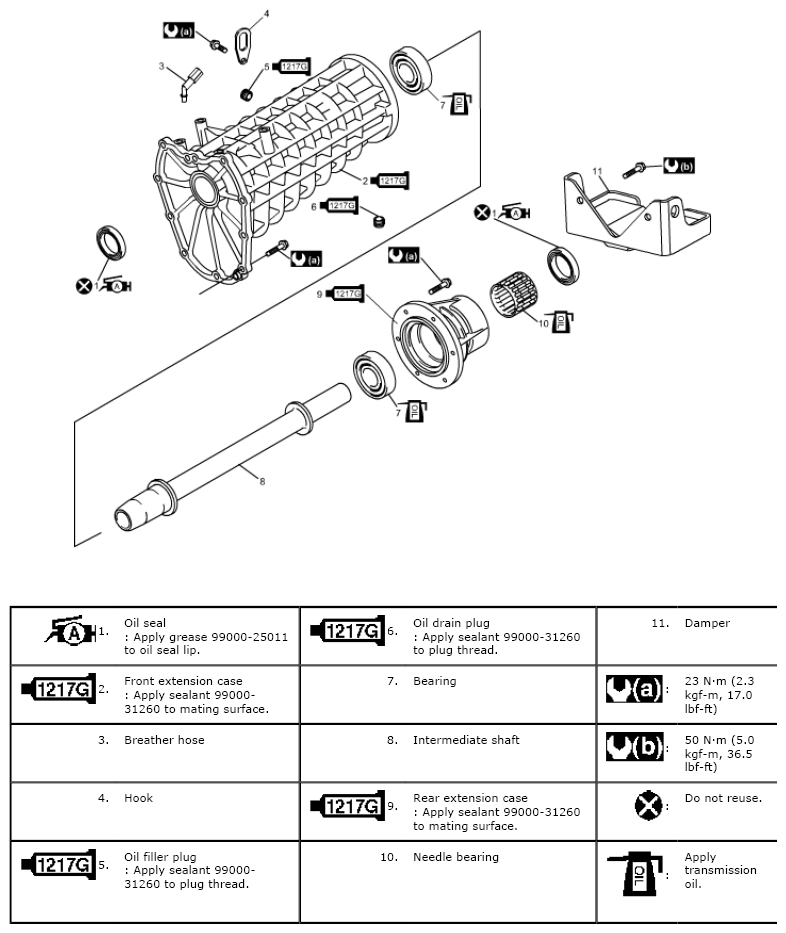

Fig 1: Extension Case Assembly Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
