Gear Shift Control Lever Assembly Components
Gear Shift Control Lever Assembly Components

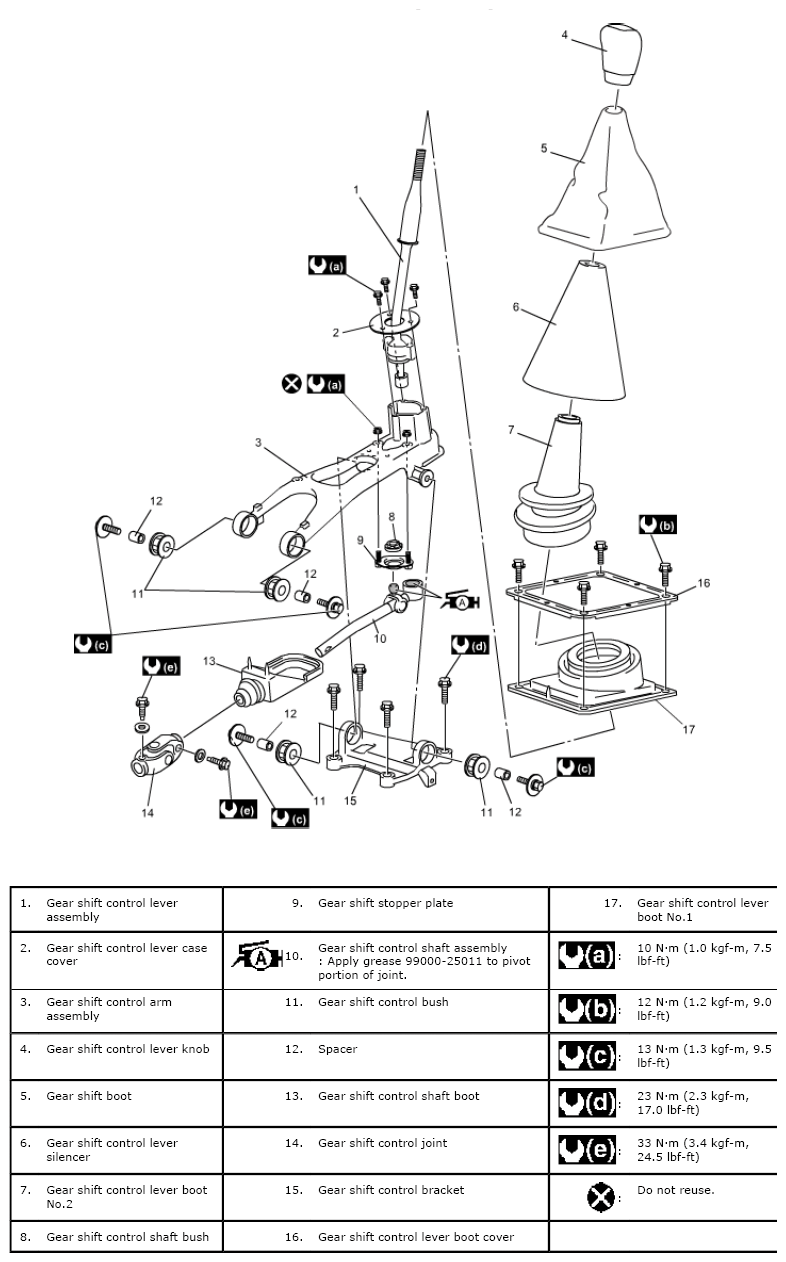

Fig 1: Exploded View Of Gear Shift Control Lever Assembly With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
