Ignition Coil Assembly Removal and Installation: Removal

  1. Disconnect negative (-) cable from battery.
  2. Remove engine cover. See AIR CLEANER ASSEMBLY REMOVAL AND INSTALLATION .
  3. Disconnect ignition coil connectors (1).
  4. Remove ignition coil assembly (2).

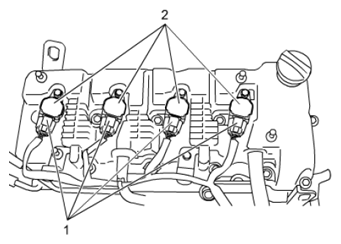

    Fig 1: Identifying Ignition Coil Assembly Components
    G06868224Courtesy of SUZUKI OF AMERICA CORP.
