Engine Performance
›
System
›
Engine General Information And Diagnosis
›
Schematic and Routing Diagram
›
Engine and Emission Control System Flow Diagram
Engine and Emission Control System Flow Diagram

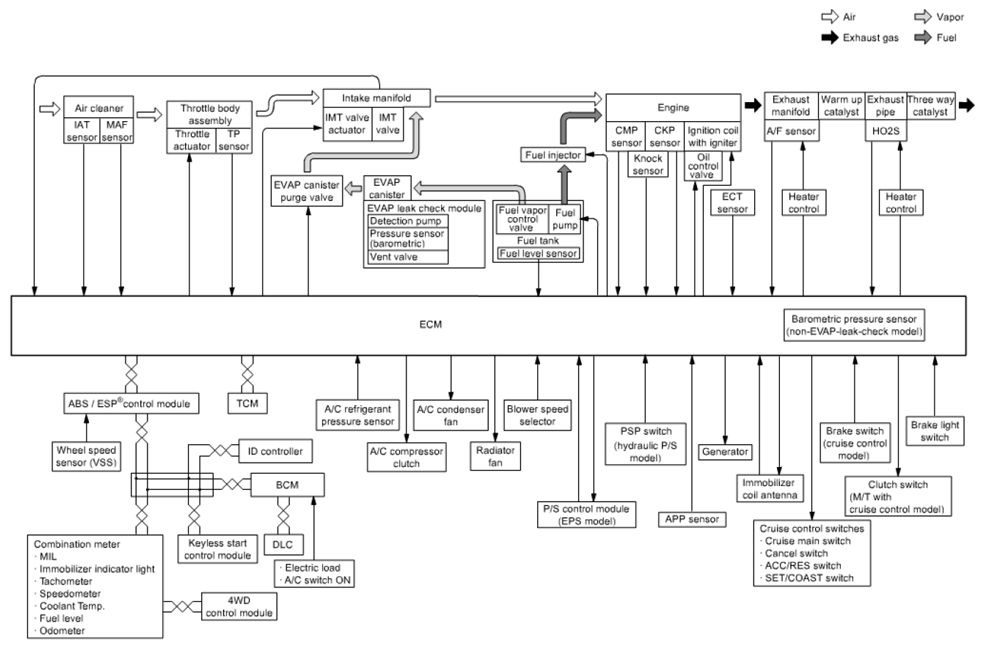

Fig 1: Engine And Emission Control System Flow Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
