P/S Control Module Removal and Installation: Removal

  1. Disconnect negative cable at battery.
  2. Remove console box.
  3. Disconnect connectors (1) from P/S control module.
  4. Remove P/S control module (2) and bracket from floor panel.

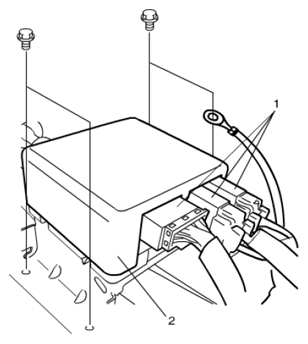

    Fig 1: Identifying P/S Control Module And Connectors
    G06867601Courtesy of SUZUKI OF AMERICA CORP.
  5. Separate P/S control module and bracket.
