Steering Wheel and Column Components
Steering Wheel and Column Components

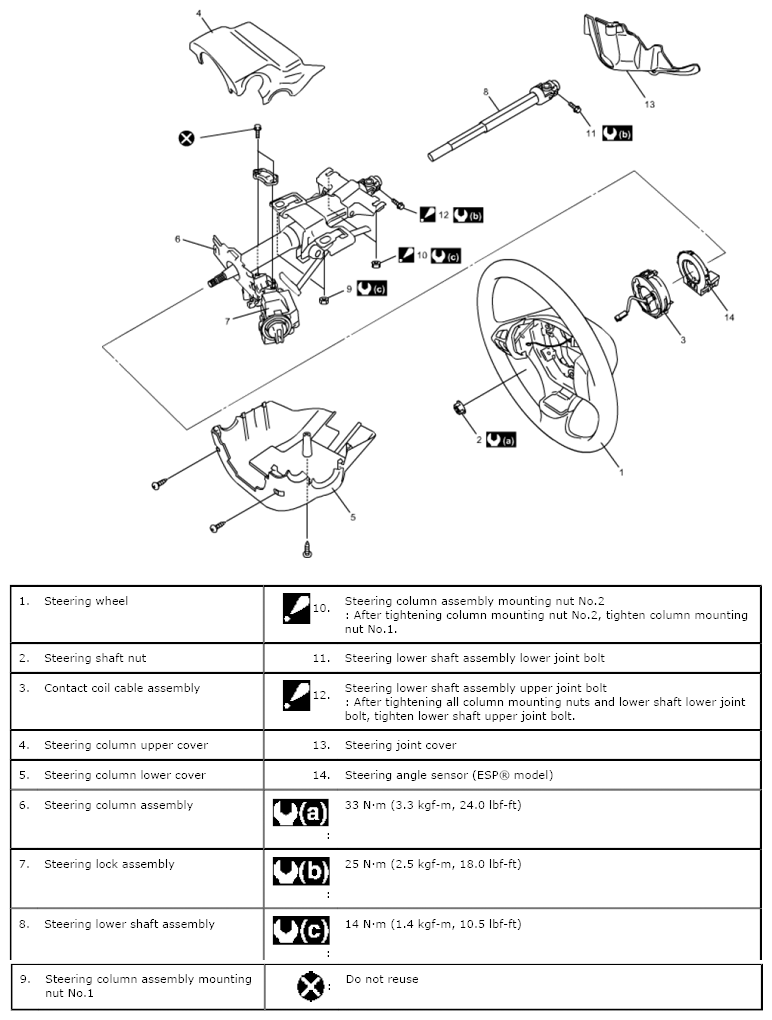

Fig 1: Identifying Steering Wheel And Column Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
