Select Cable Components

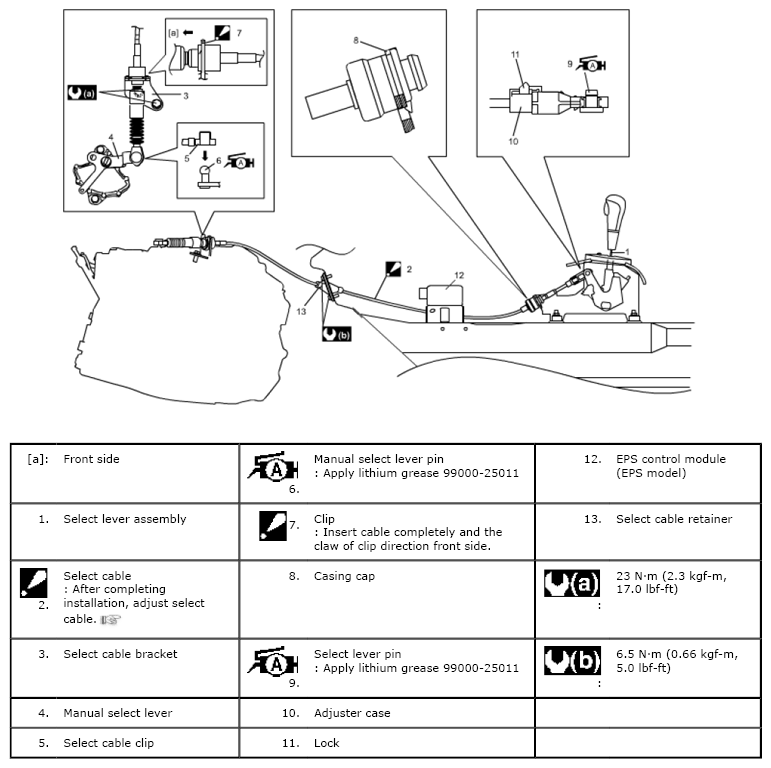

Fig 1: Identifying Select Cable Components
G06866777Courtesy of SUZUKI OF AMERICA CORP.
