SX4 LE, Automatic CVT
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Continuously Variable Transaxle (CVT)
›
Schematic and Routing Diagram
›
Transmission Control Module (TCM) Wiring Diagram
Transmission Control Module (TCM) Wiring Diagram

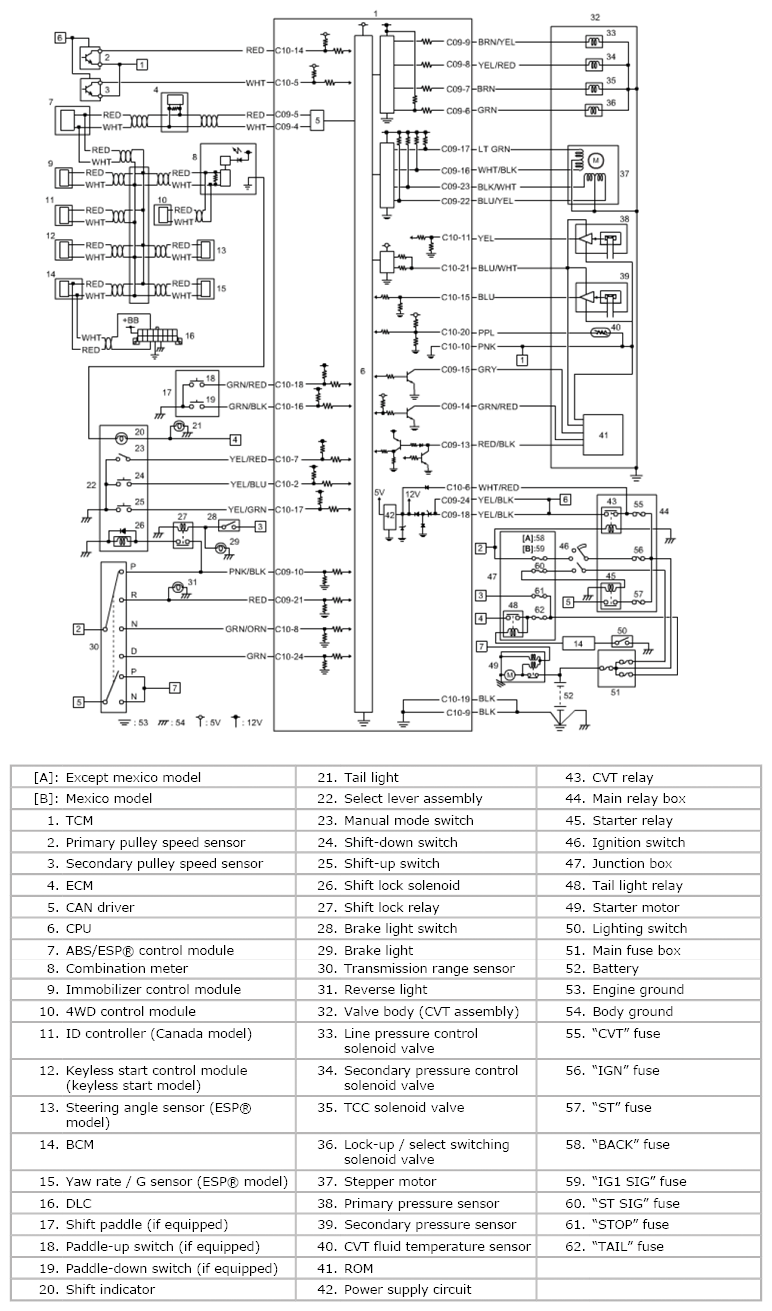

Fig 1: Transmission Control Module (TCM) Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
