Input Shaft Components
Input Shaft Components

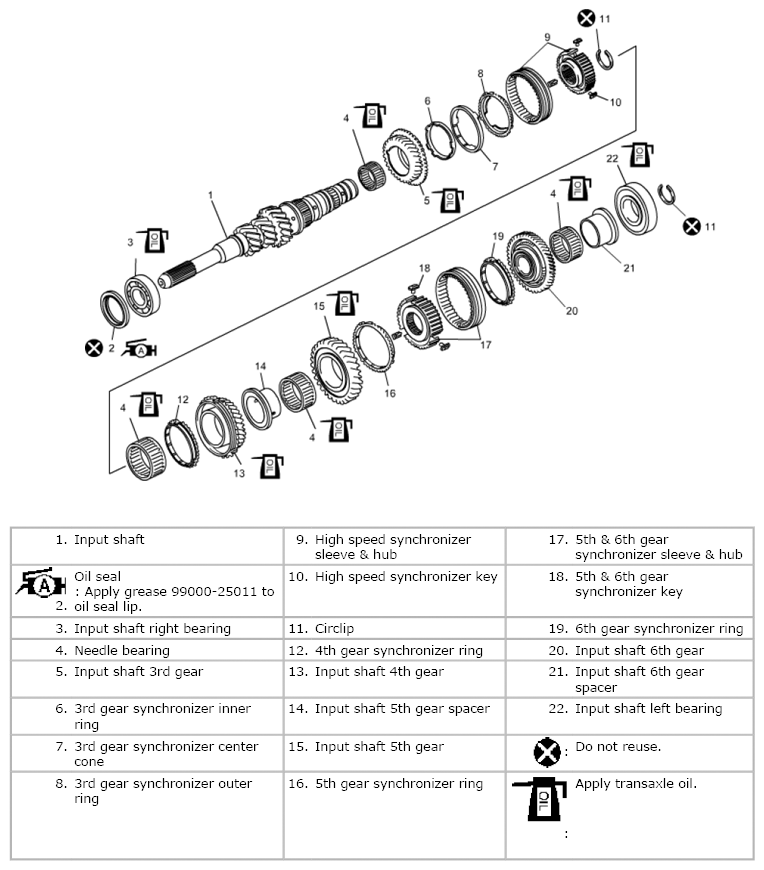

Fig 1: Identifying Input Shaft Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
