General Description
›
Descriptions for Clips and Fasteners
Descriptions for Clips and Fasteners
Replace any clips and fasteners which are damaged during removal or installation.

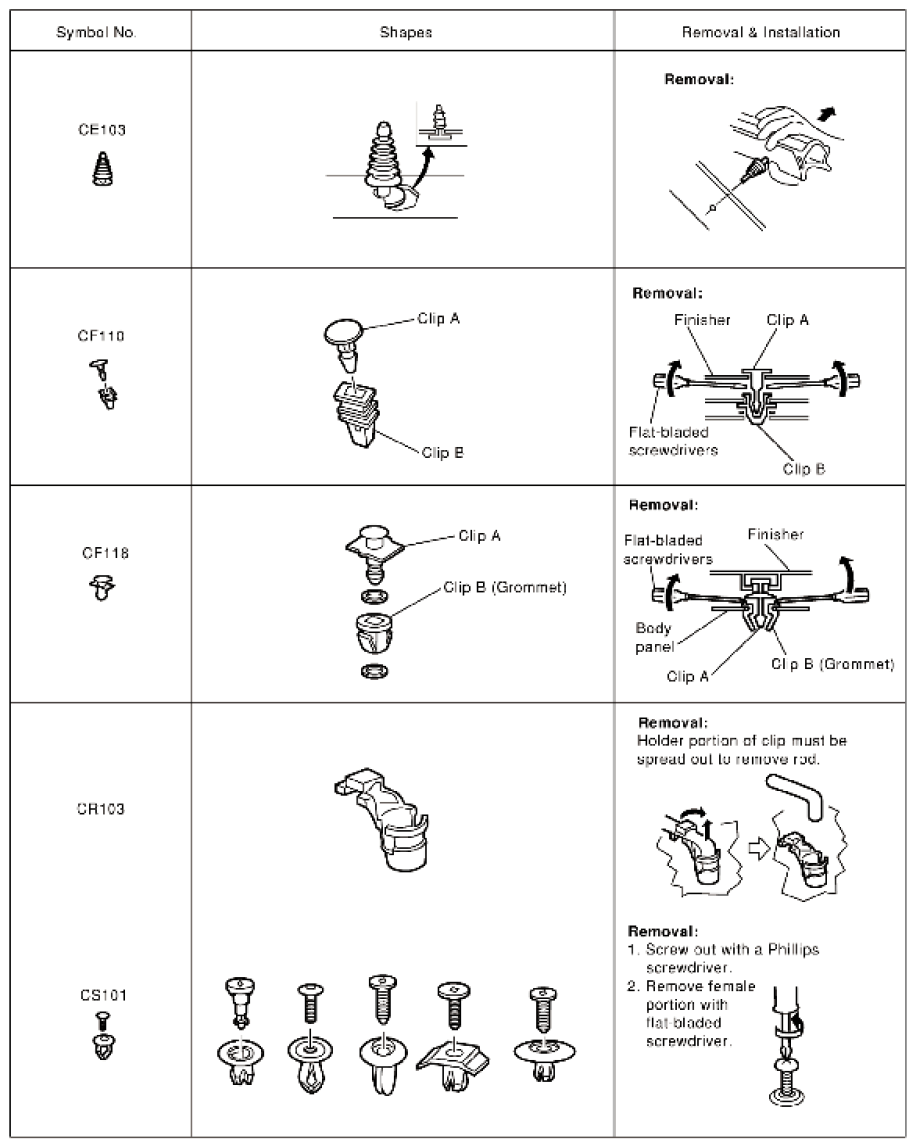

Fig 1: Clip And Fastener Symbol Chart (1 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

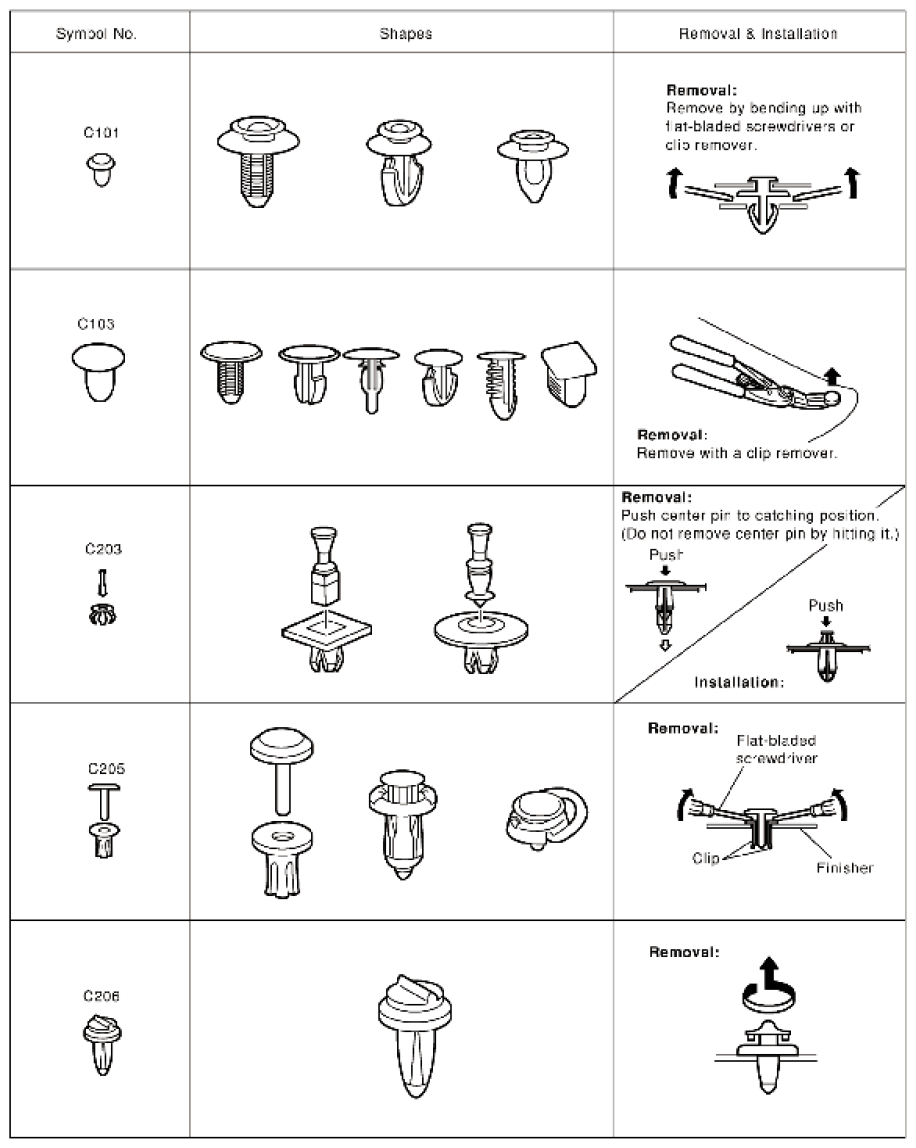

Fig 2: Clip And Fastener Symbol Chart (2 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

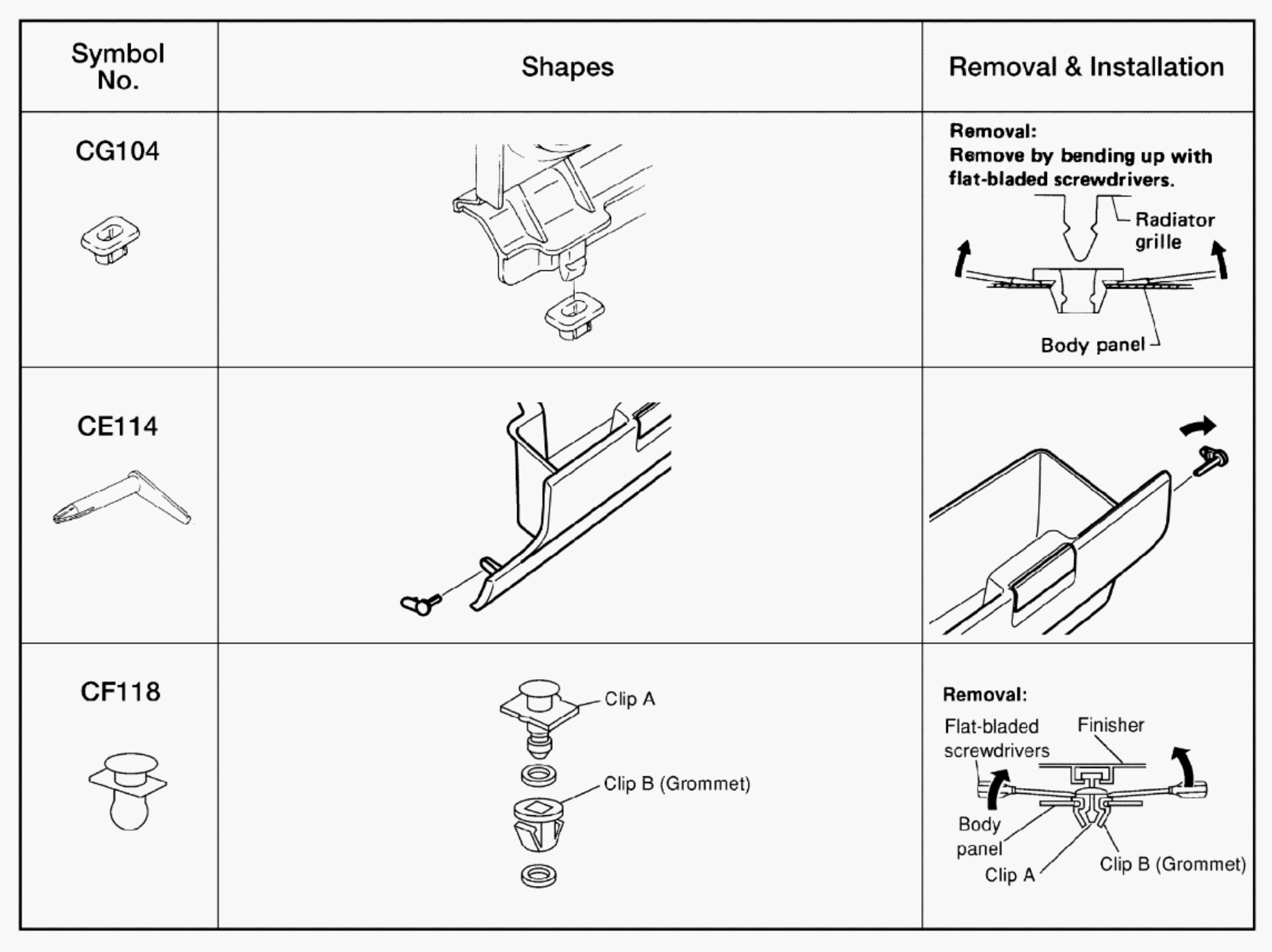

Fig 3: Clip And Fastener Symbol Chart (3 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

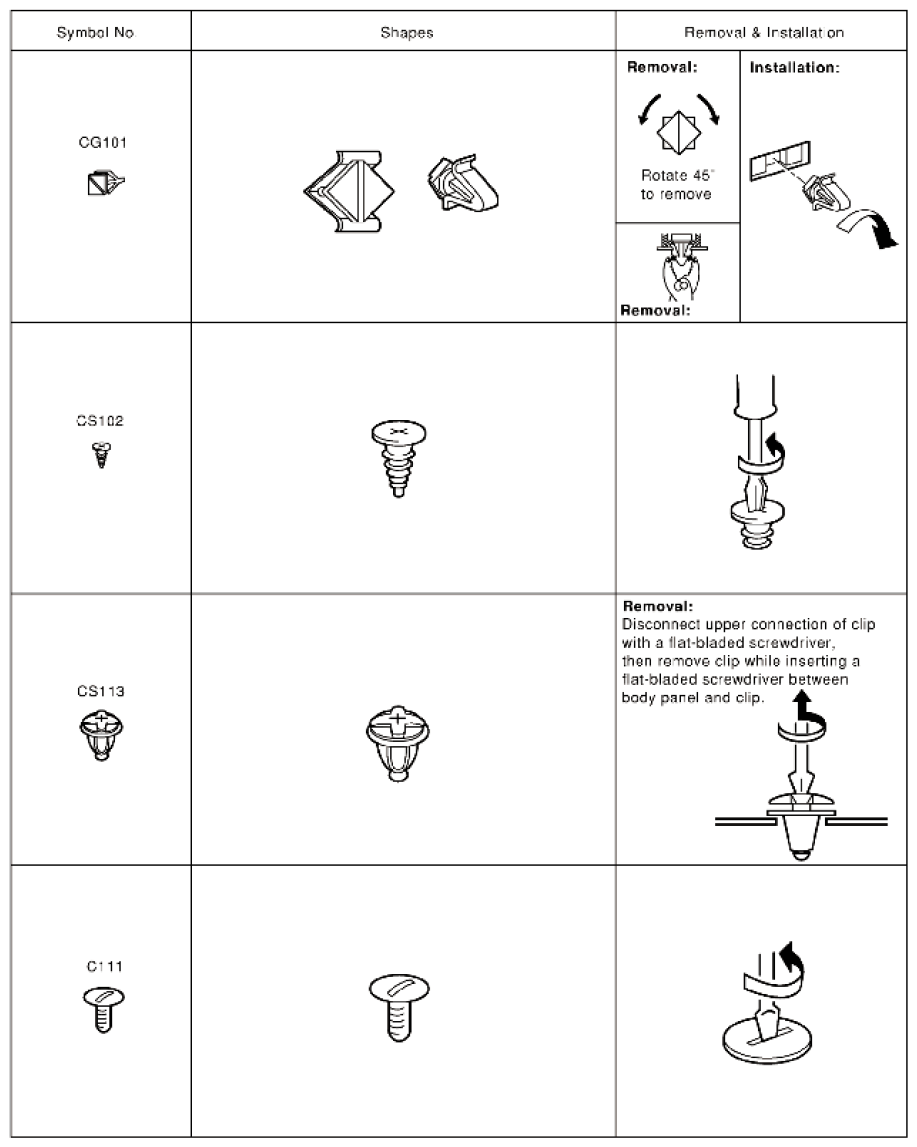

Fig 4: Clip And Fastener Symbol Chart (4 of 4)
Courtesy of SUZUKI OF AMERICA CORP.
