Power Window System: Component Parts Location - King Cab

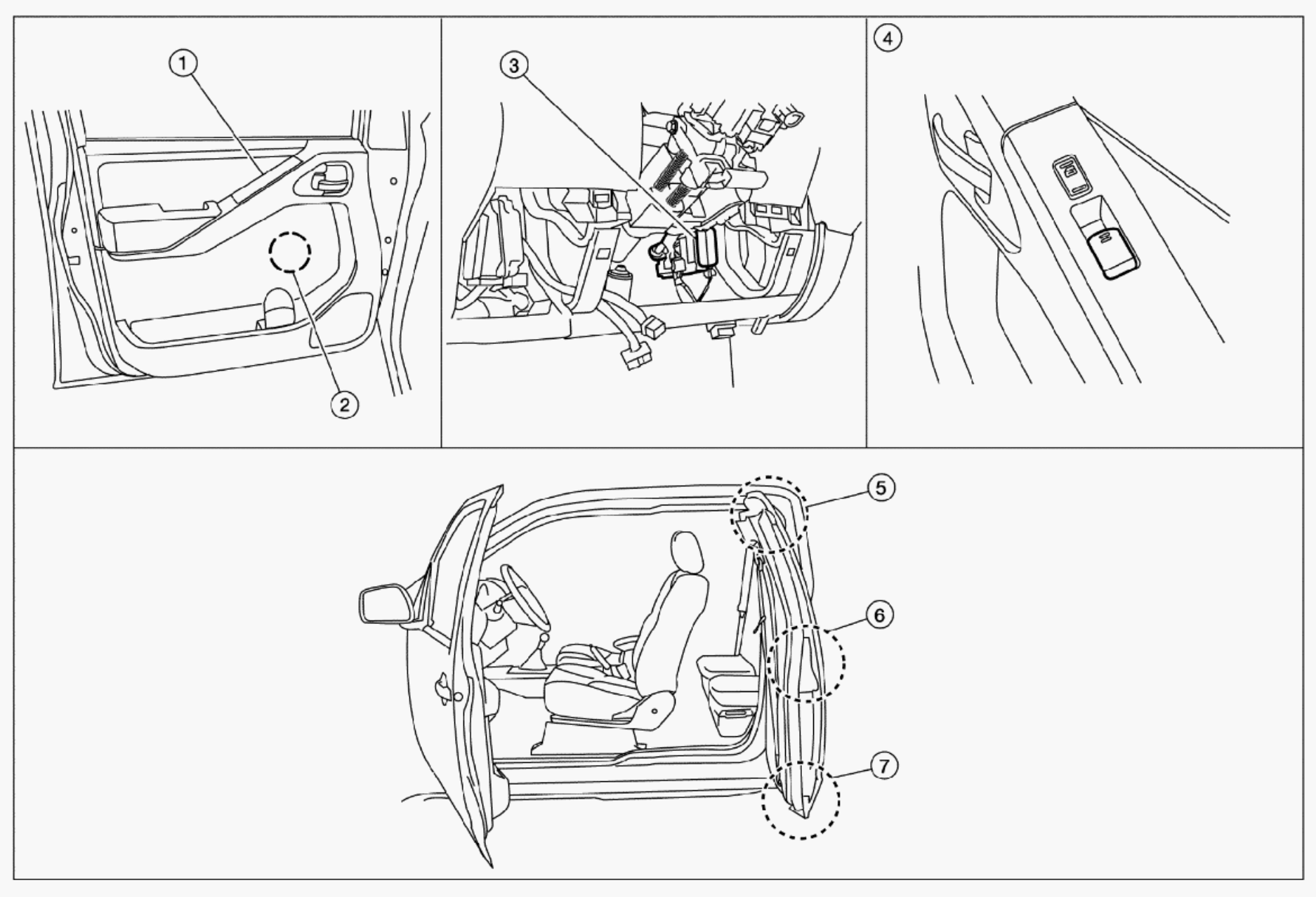

Fig 1: Identifying Power Window System Component Parts Location (King Cab) (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Identifying Power Window System Component Parts Location (King Cab) (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.
