Disassembly And Assembly: Disassembly

  1. Remove the mirror glass. Refer to [DOOR MIRROR GLASS: REMOVAL AND INSTALLATION ]
  2. Remove the screws (A) and release the actuator from housing (B).

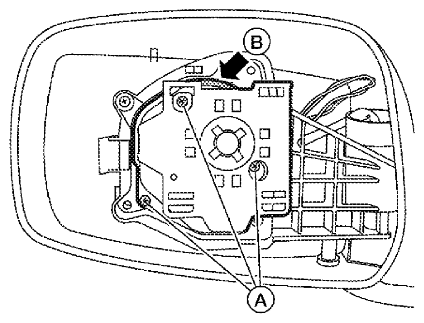

    Fig 1: Identifying Actuator And Screws
    G06443686Courtesy of SUZUKI OF AMERICA CORP.
  3. Disconnect the connectors (A) and remove the actuator (1).

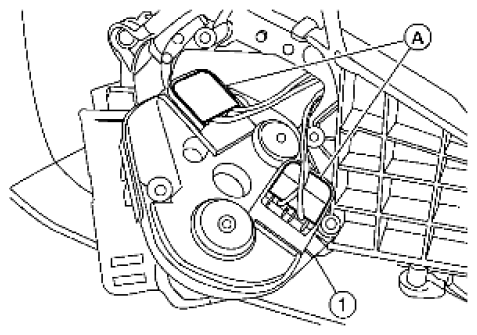

    Fig 2: Identifying Actuator And Connectors
    G06443687Courtesy of SUZUKI OF AMERICA CORP.
