Parking Brake Control: Exploded View
Parking Brake Control: Exploded View

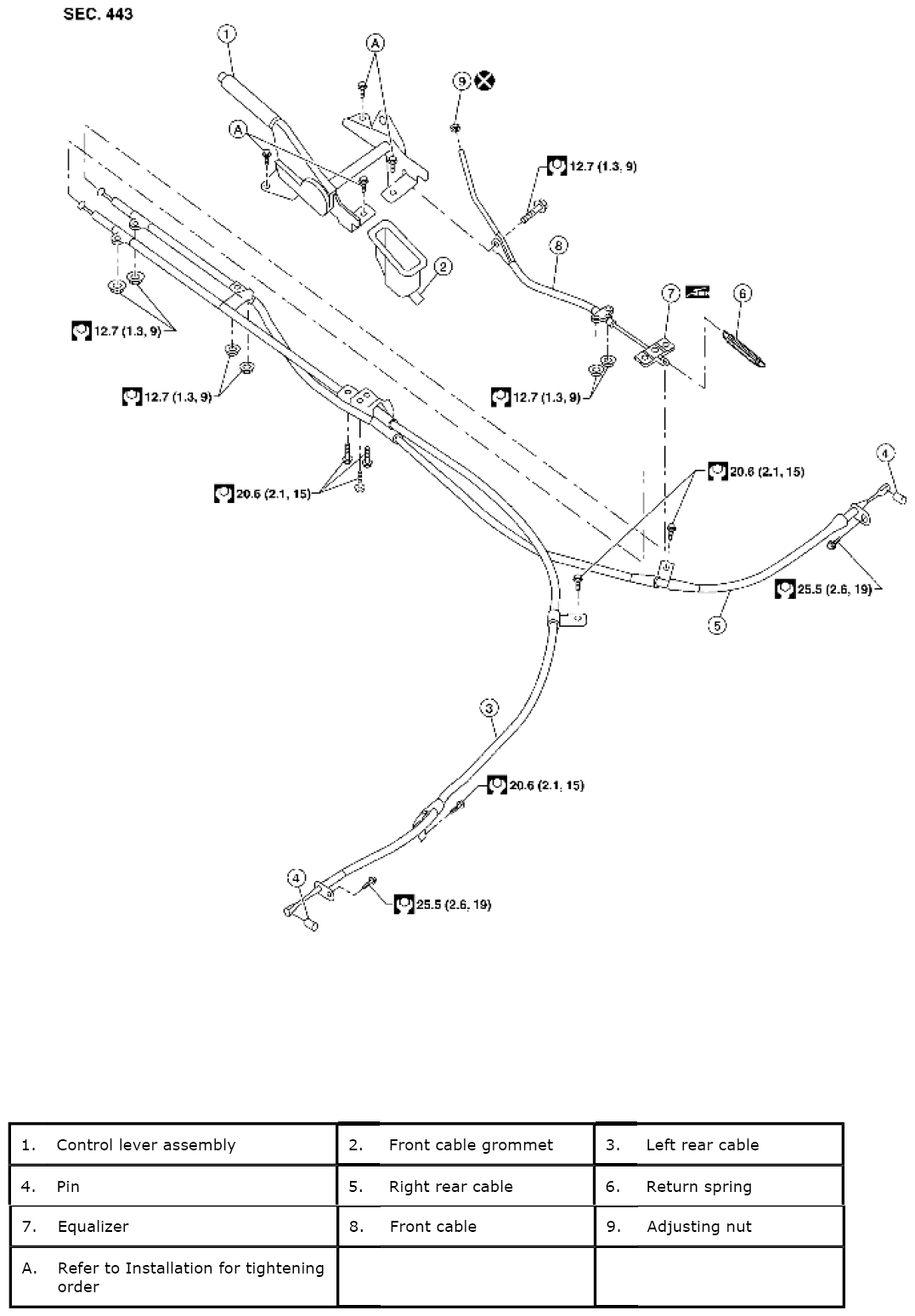

Fig 1: Exploded View Of Parking Brake Control With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
