Parking Brake Shoe: Exploded View
Parking Brake Shoe: Exploded View

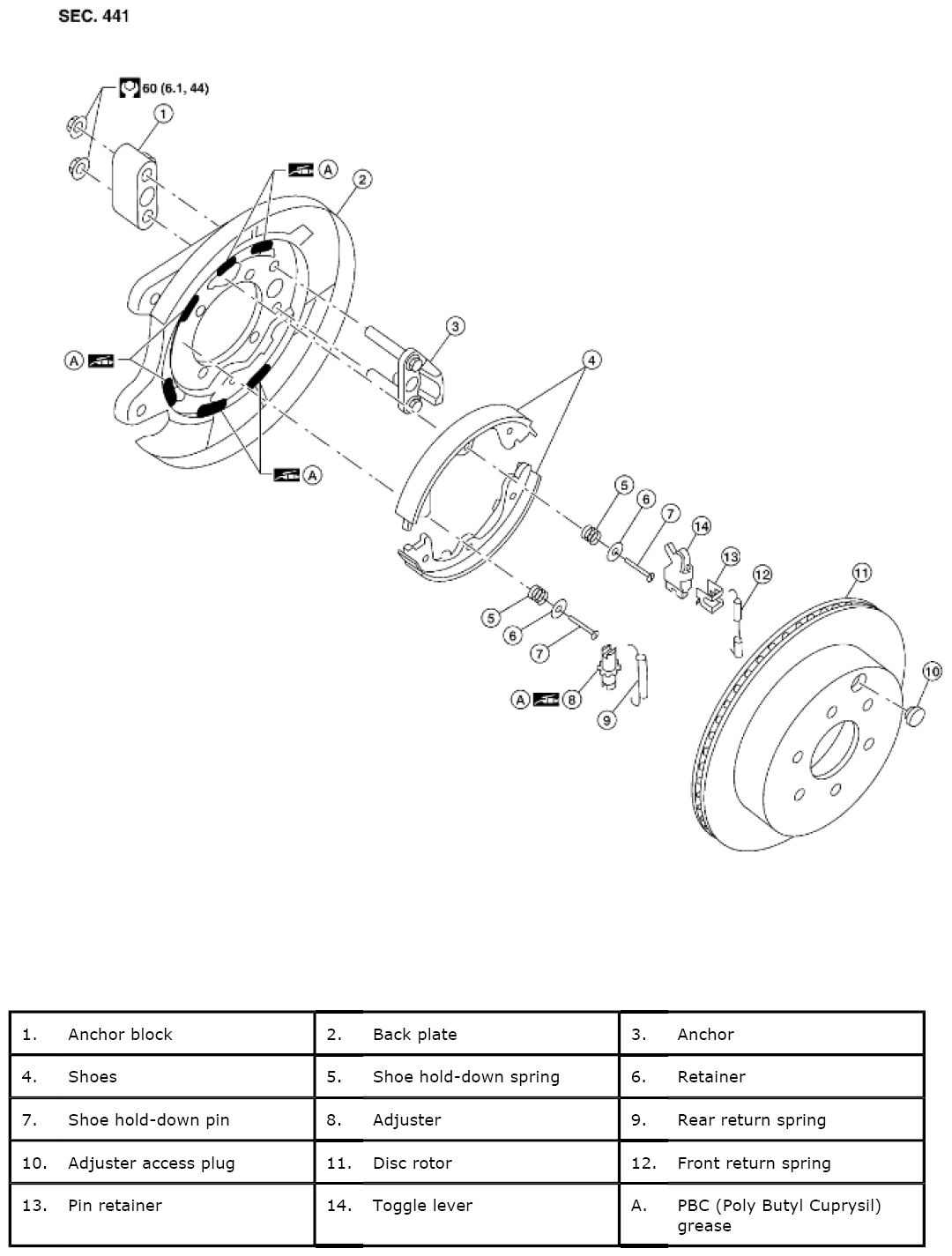

Fig 1: Exploded View Of Parking Brake Shoe
Courtesy of SUZUKI OF AMERICA CORP.
