Ground Point
›
Ground Distribution
›
Body No. 2 Harness
Body No. 2 Harness

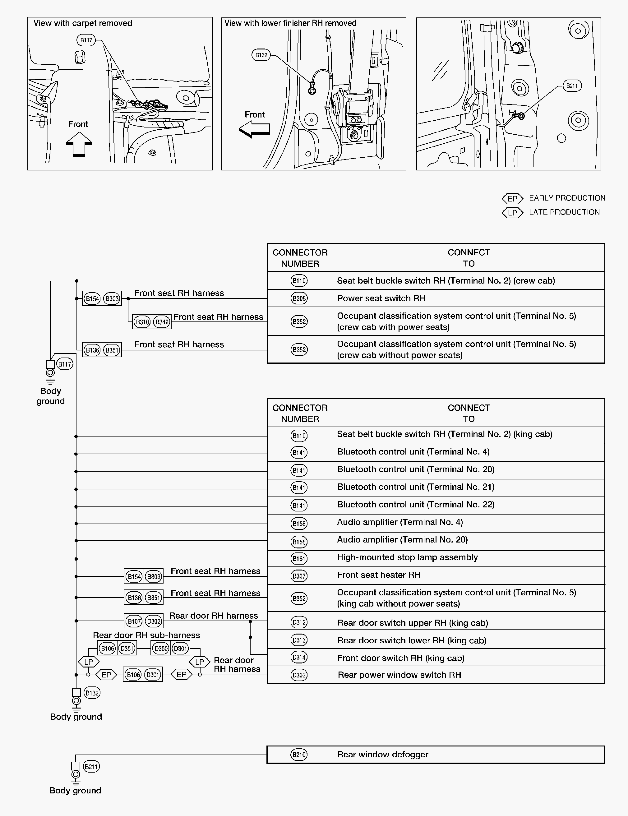

Fig 1: Identifying Ground Distribution - Body No. 2 Harness
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
