Repair and Diagnosis
›
Electrical
›
Body Electrical
›
Wiring Systems
›
Ground Point
›
Ground Distribution
›
Engine Room Harness
Engine Room Harness

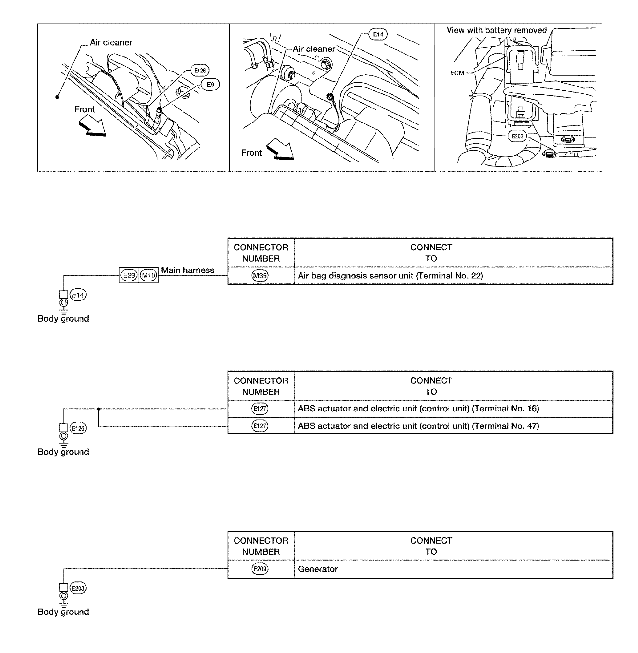

Fig 1: Identifying Ground Distribution - Engine Room Harness (1 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

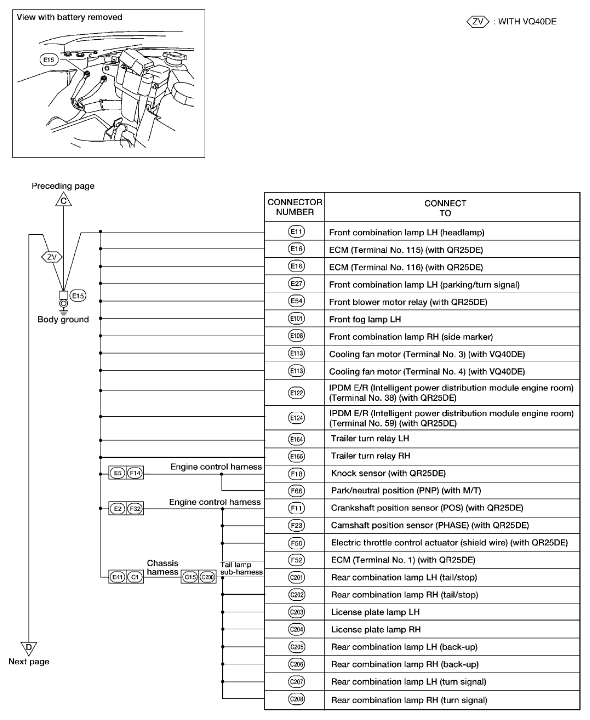

Fig 2: Identifying Ground Distribution - Engine Room Harness (2 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

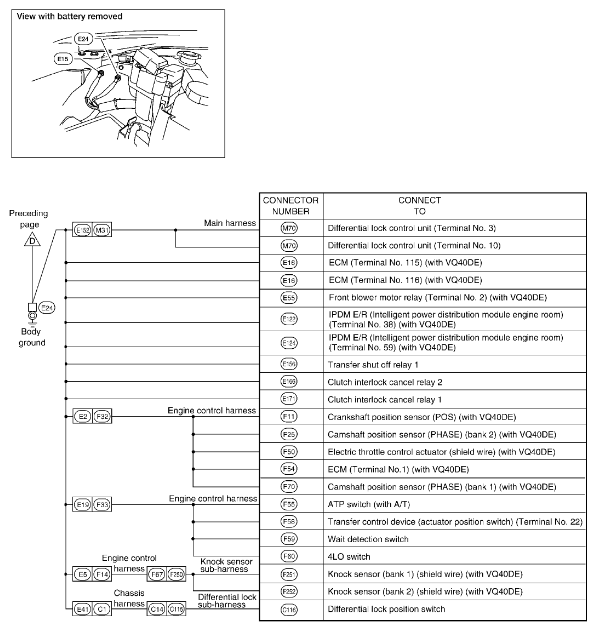

Fig 3: Identifying Ground Distribution - Engine Room Harness (3 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

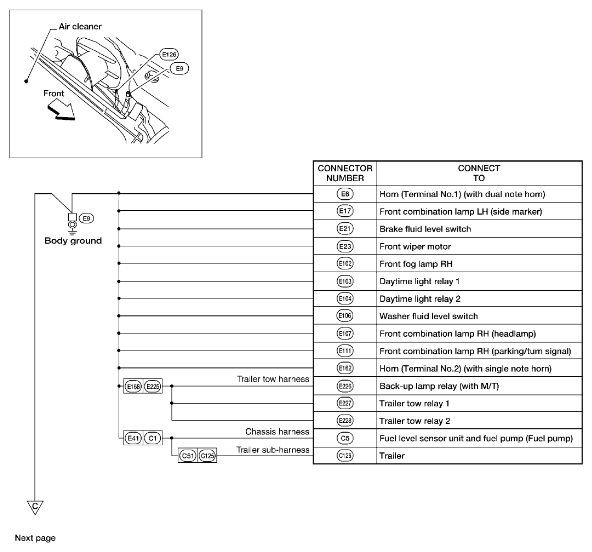

Fig 4: Identifying Ground Distribution - Engine Room Harness (4 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
