Repair and Diagnosis
›
Electrical
›
Body Electrical
›
Wiring Systems
›
Ground Point
›
Ground Distribution
›
Main Harness
Main Harness

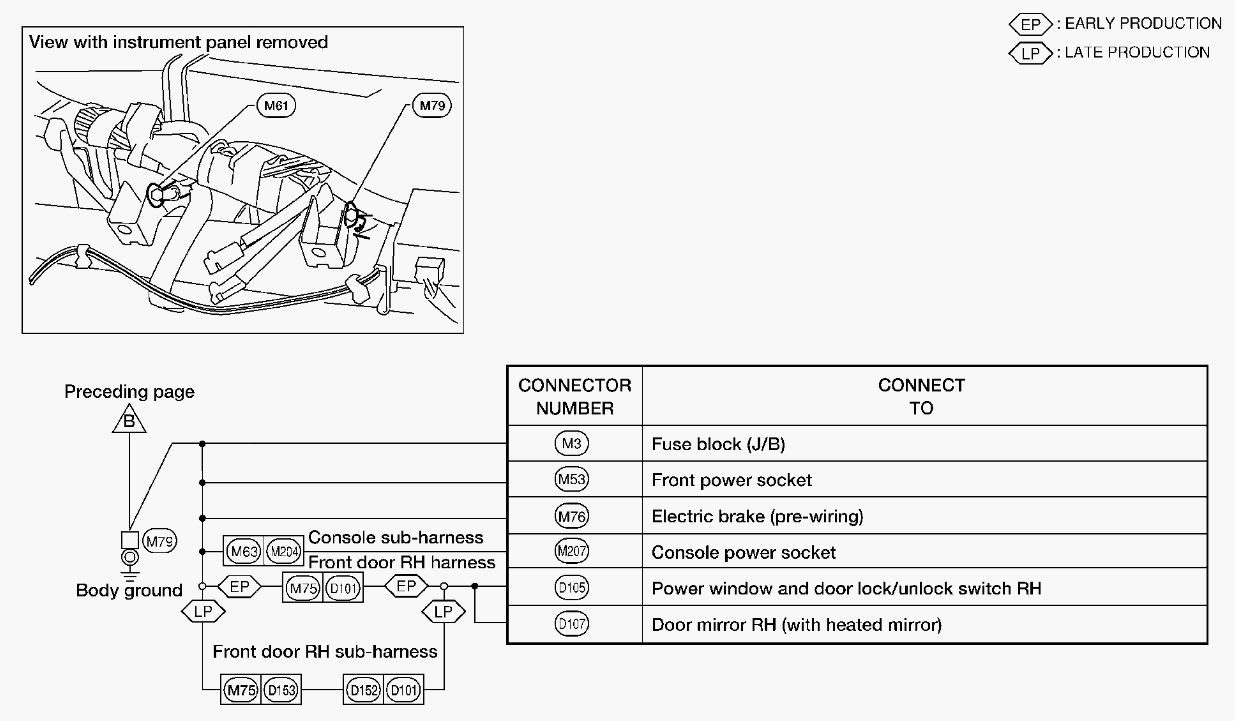

Fig 1: Identifying Ground Distribution - Main Harness (1 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

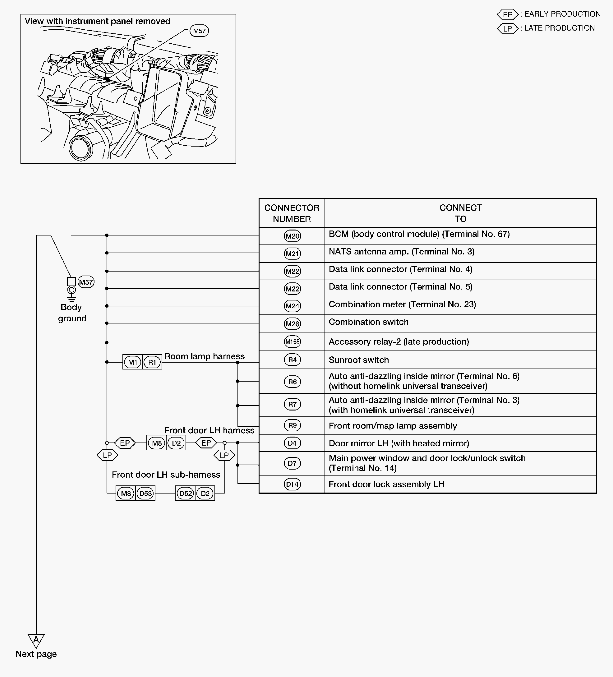

Fig 2: Identifying Ground Distribution - Main Harness (2 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

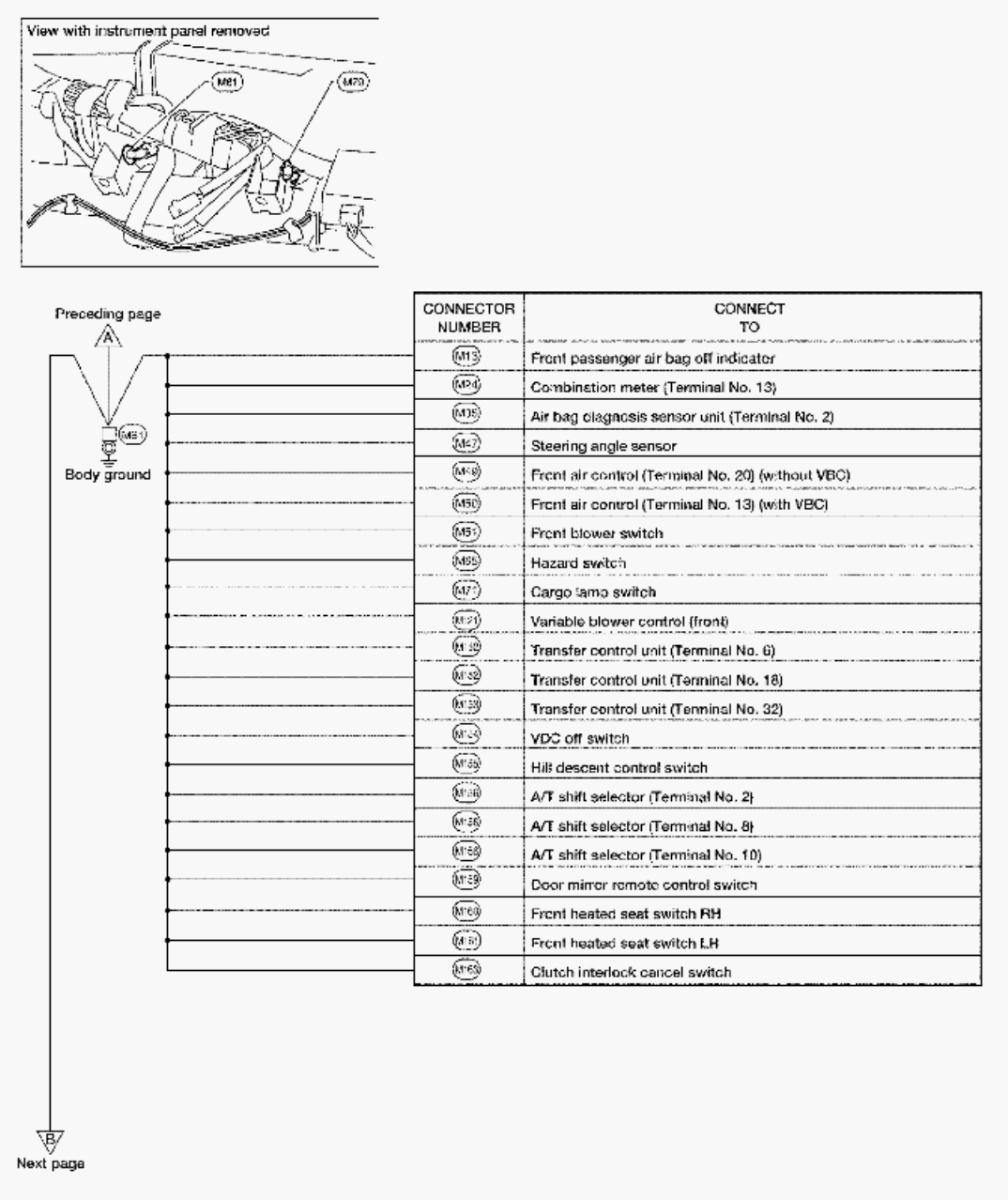

Fig 3: Identifying Ground Distribution - Main Harness (3 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.
