Auto Light System: Wiring Diagram

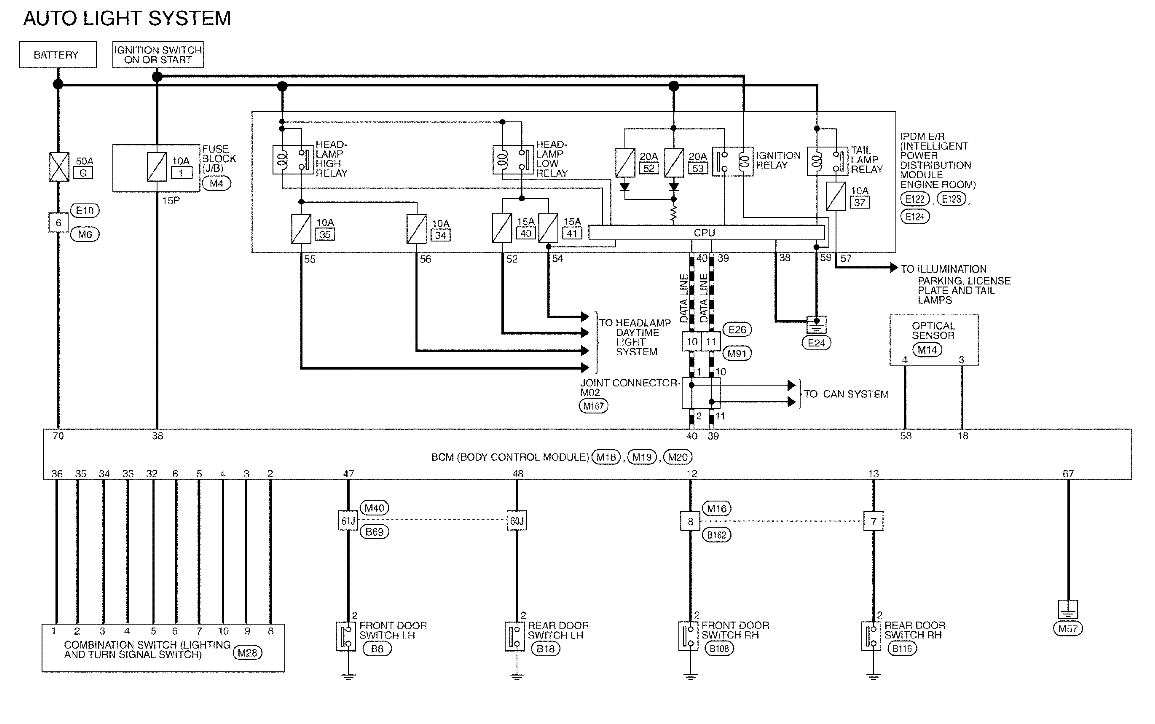

Fig 1: Auto Light System - Wiring Diagram (1 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

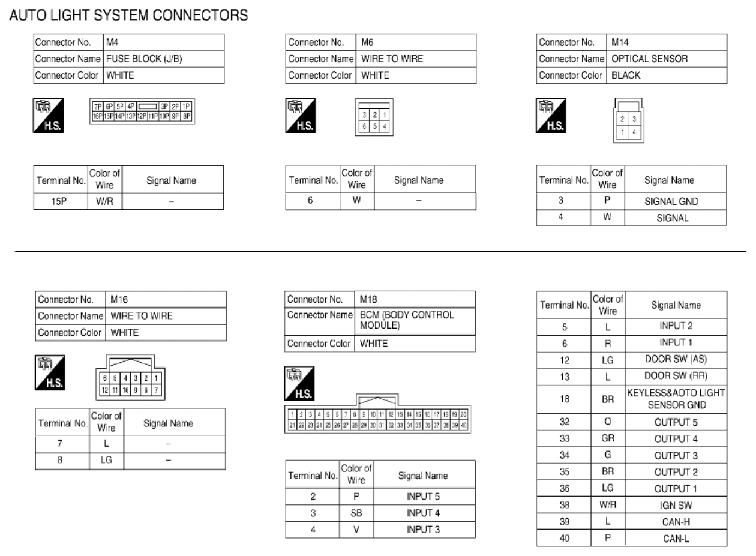

Fig 2: Auto Light System - Wiring Diagram (2 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

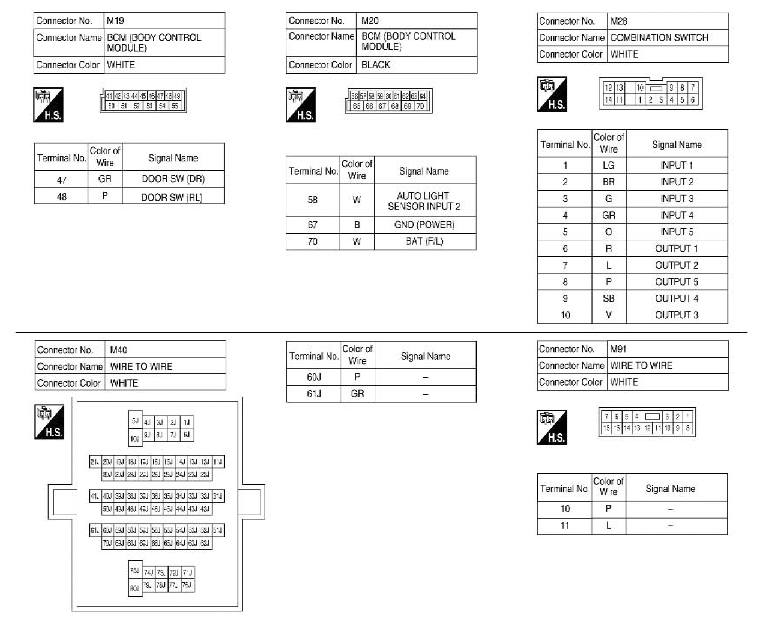

Fig 3: Auto Light System - Wiring Diagram (3 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

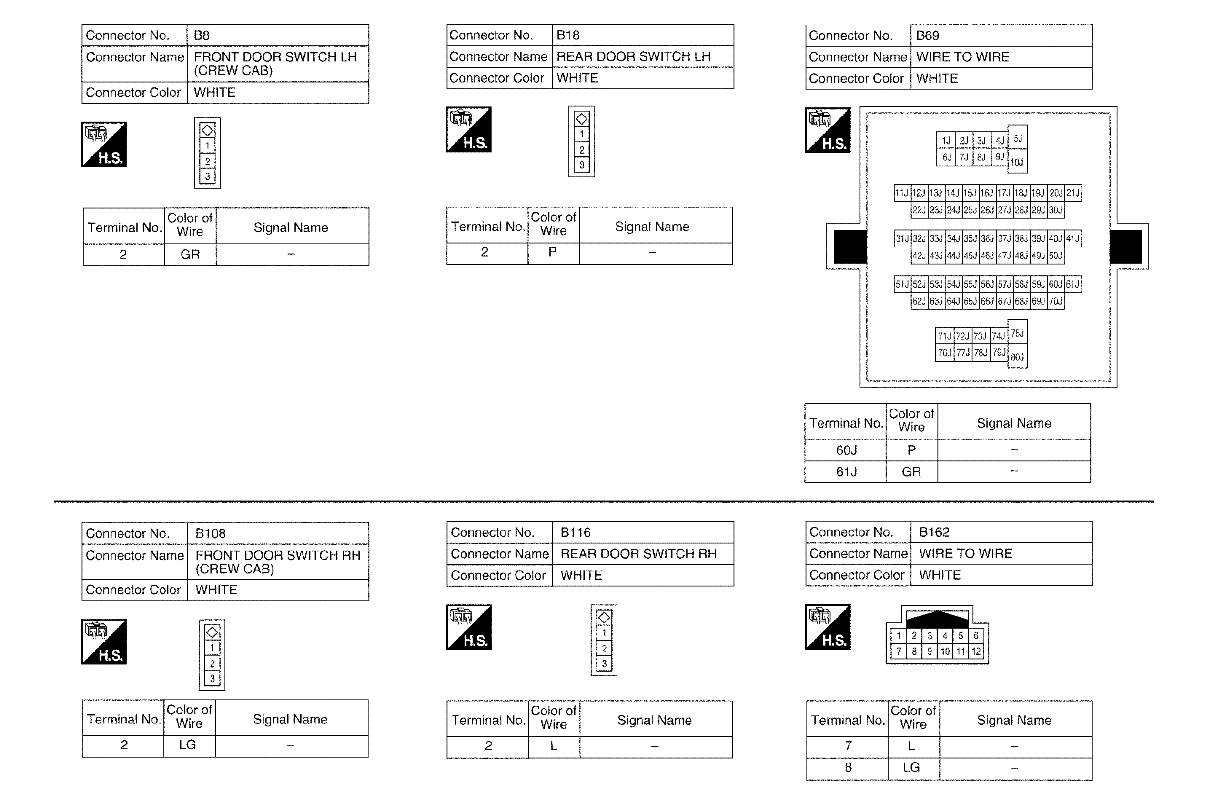

Fig 4: Auto Light System - Wiring Diagram (4 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

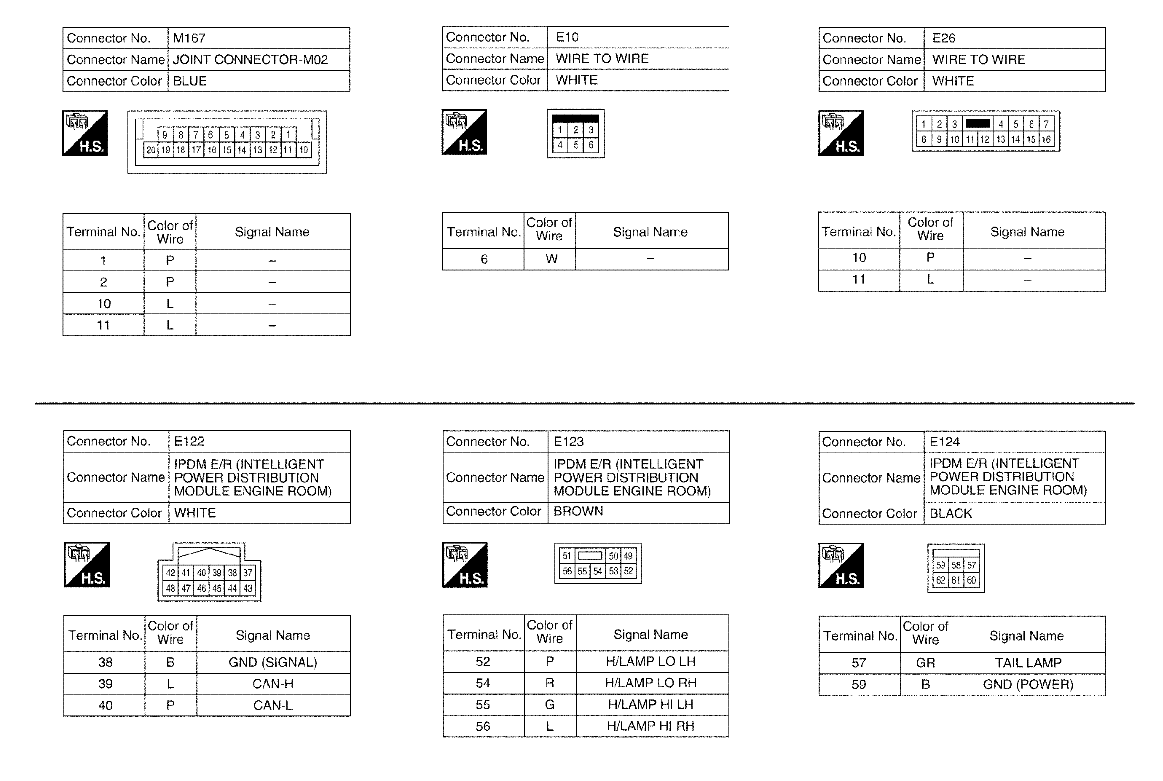

Fig 5: Auto Light System - Wiring Diagram (5 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.
