Front Fog Lamp System: Wiring Diagram

Fig 1: Front Fog Lamp System - Wiring Diagram (1 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

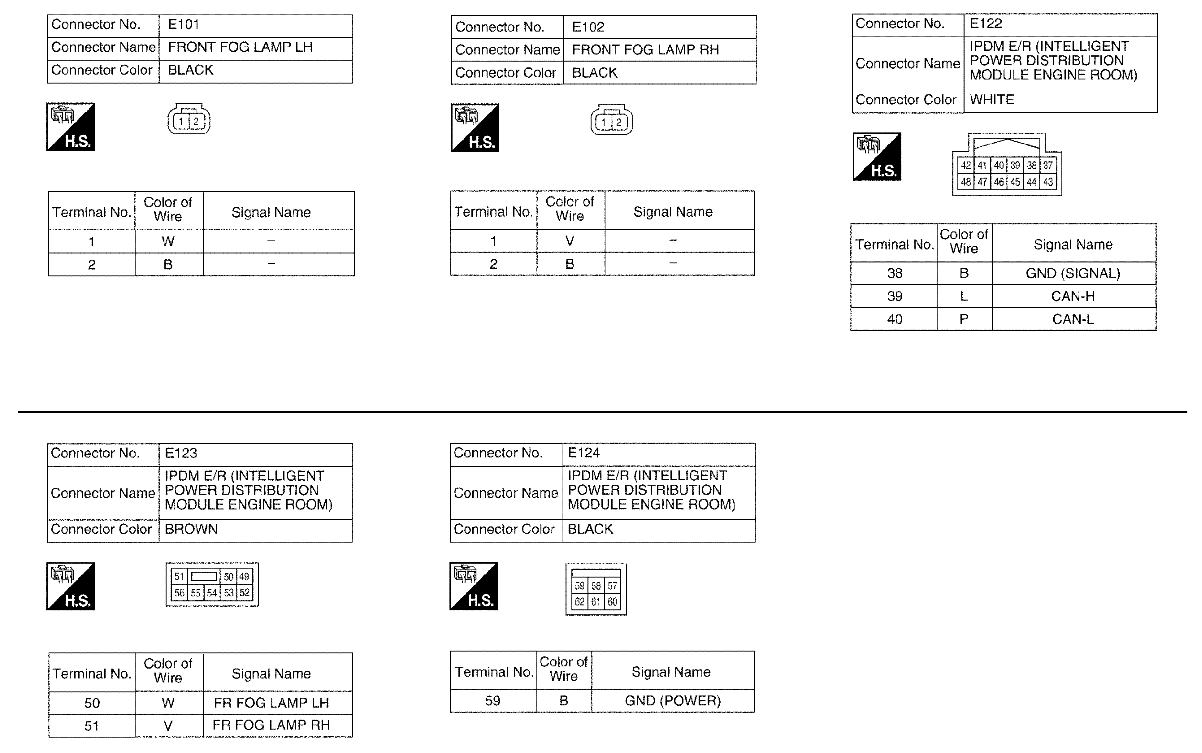

Fig 2: Front Fog Lamp System - Wiring Diagram (2 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

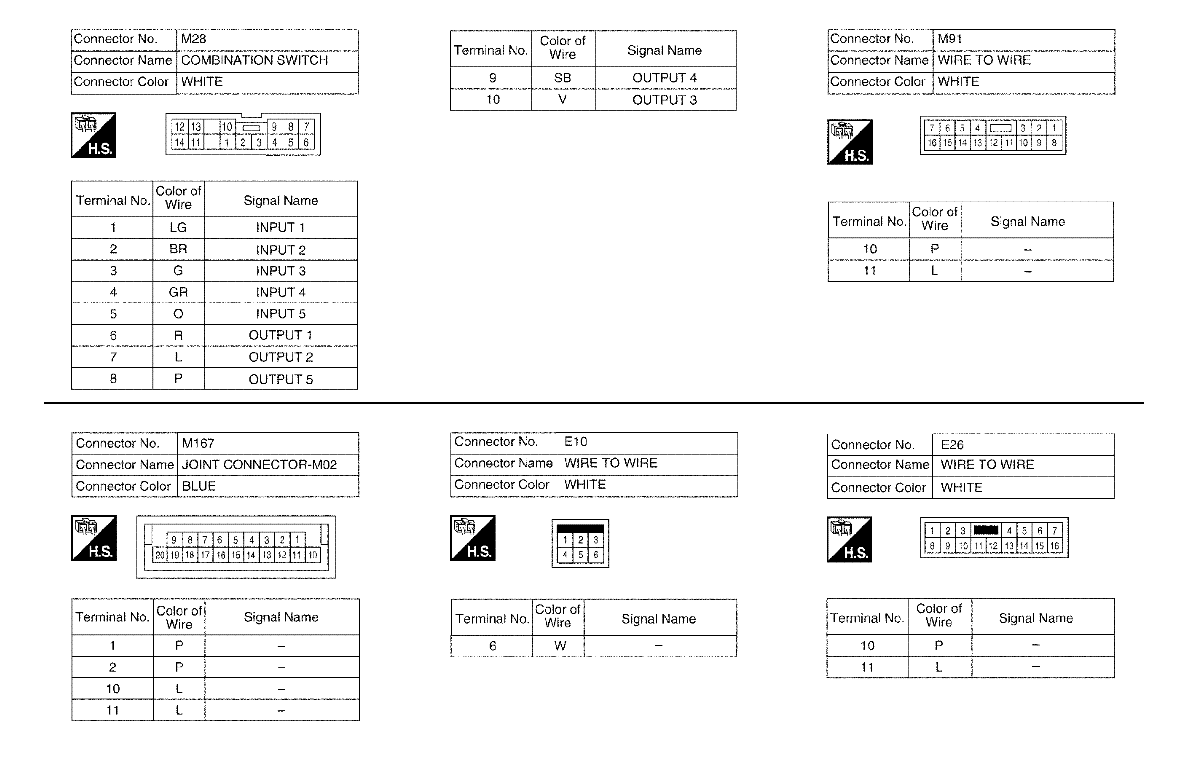

Fig 3: Front Fog Lamp System - Wiring Diagram (3 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

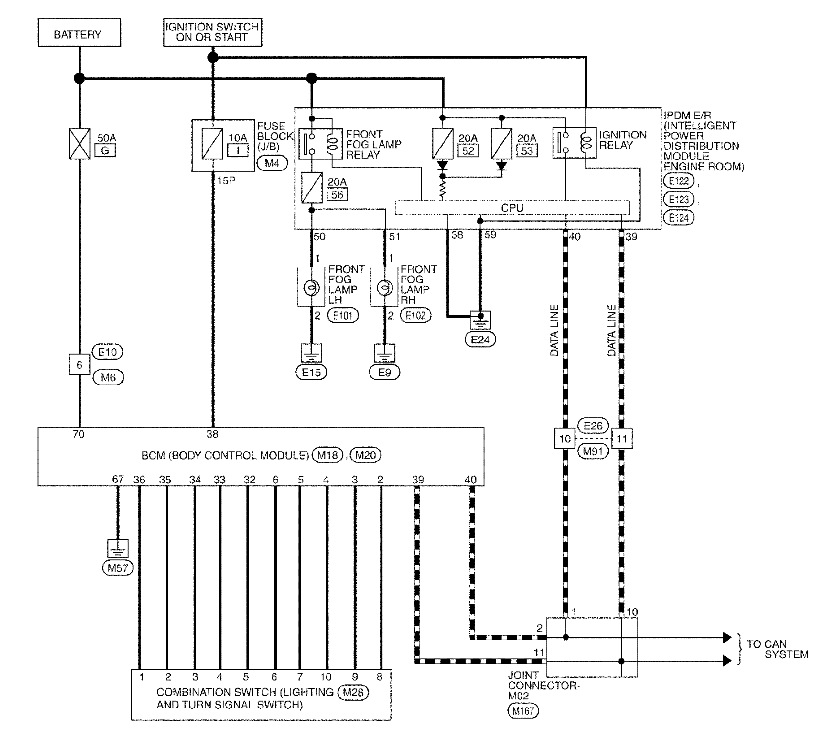

Fig 4: Front Fog Lamp System - Wiring Diagram (4 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.
