Heater Control: Wiring Diagram

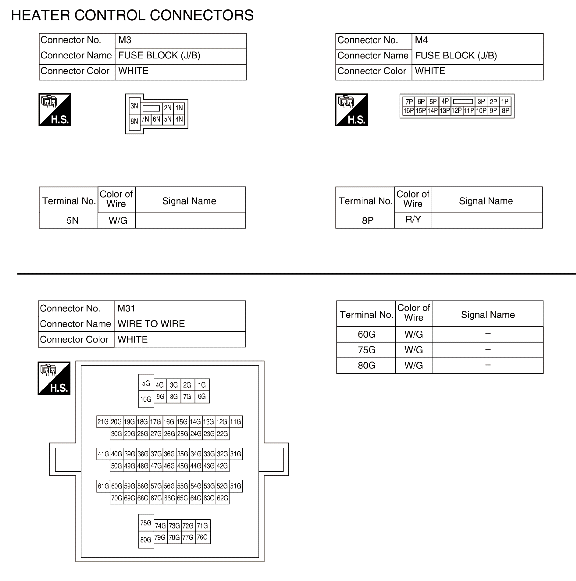

Fig 1: Heater Control: Wiring Diagram (1 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

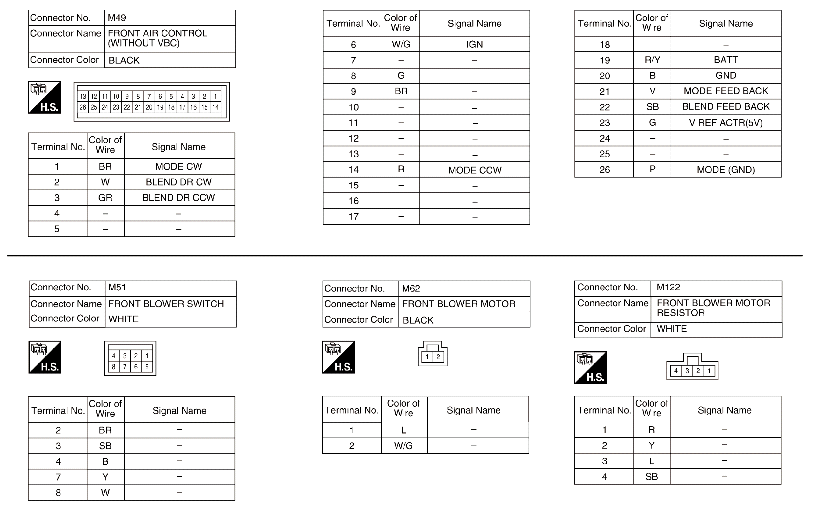

Fig 2: Heater Control: Wiring Diagram (2 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

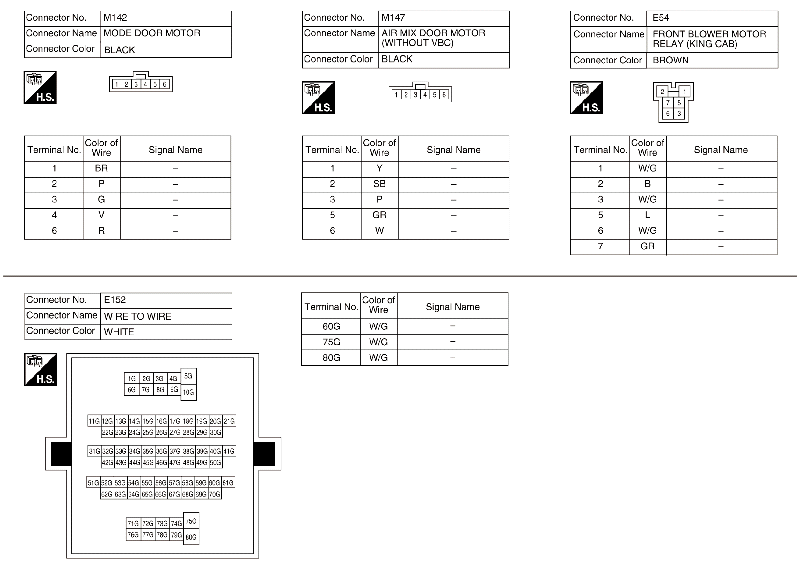

Fig 3: Heater Control: Wiring Diagram (3 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

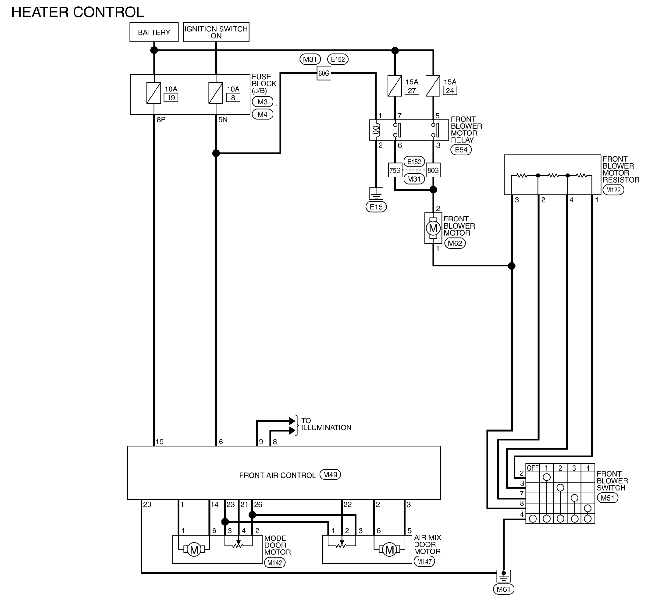

Fig 4: Heater Control: Wiring Diagram (4 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.
