Immobilizer System: Wiring Diagram

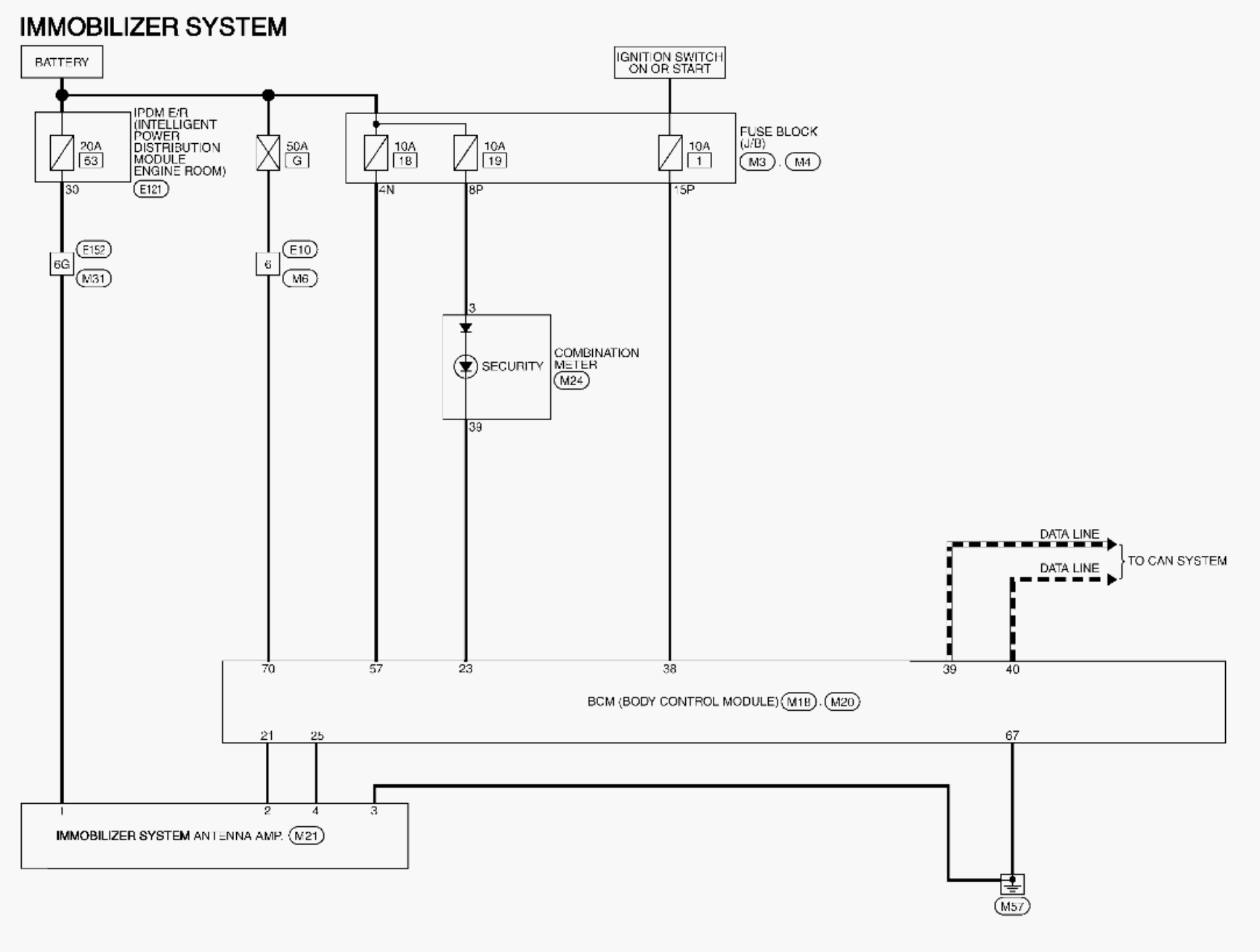

Fig 1: Immobilizer System - Wiring Diagram (1 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

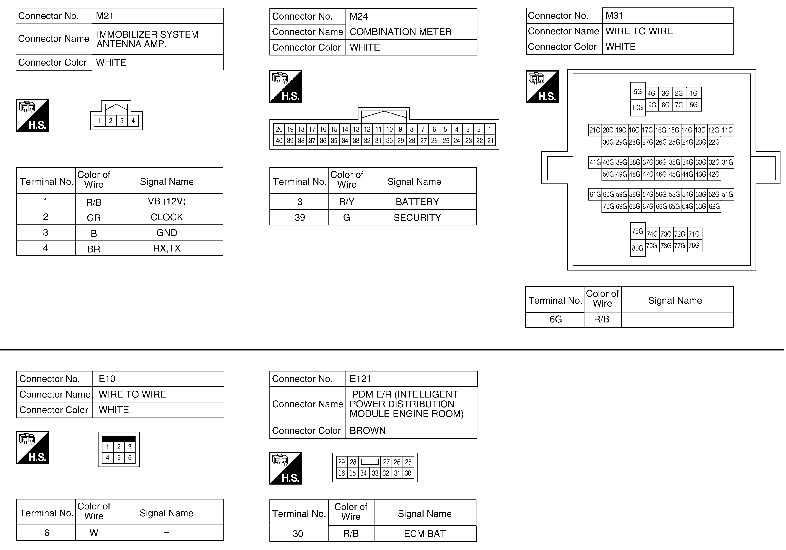

Fig 2: Immobilizer System - Wiring Diagram (2 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

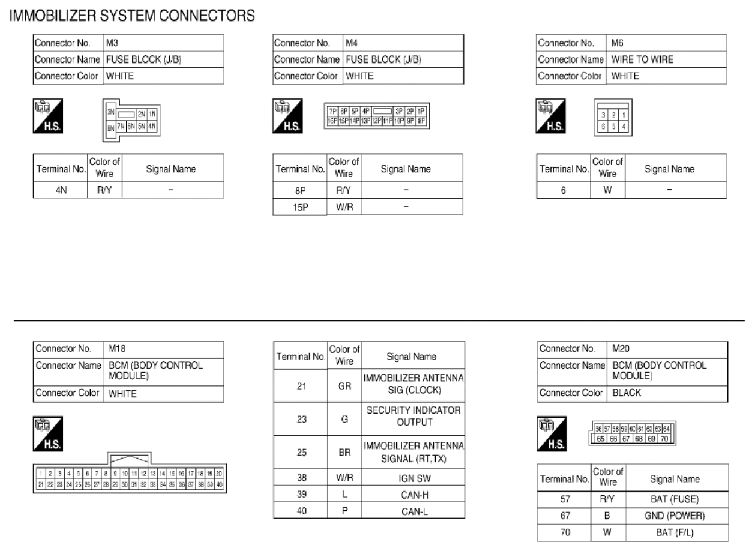

Fig 3: Immobilizer System - Wiring Diagram (3 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Immobilizer System - Wiring Diagram (4 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.
