Repair and Diagnosis
›
Electrical
›
Starter
›
Starting System
›
Schematic and Routing Diagram
›
Starting System: System Diagram [A/T]
Starting System: System Diagram [A/T]

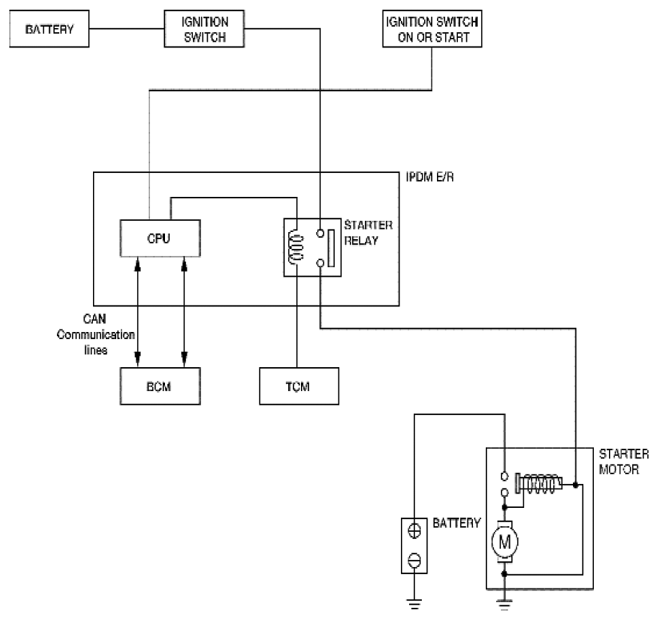

Fig 1: Starting System Diagram [A/T]
