Timing Chain: Exploded View
Timing Chain: Exploded View

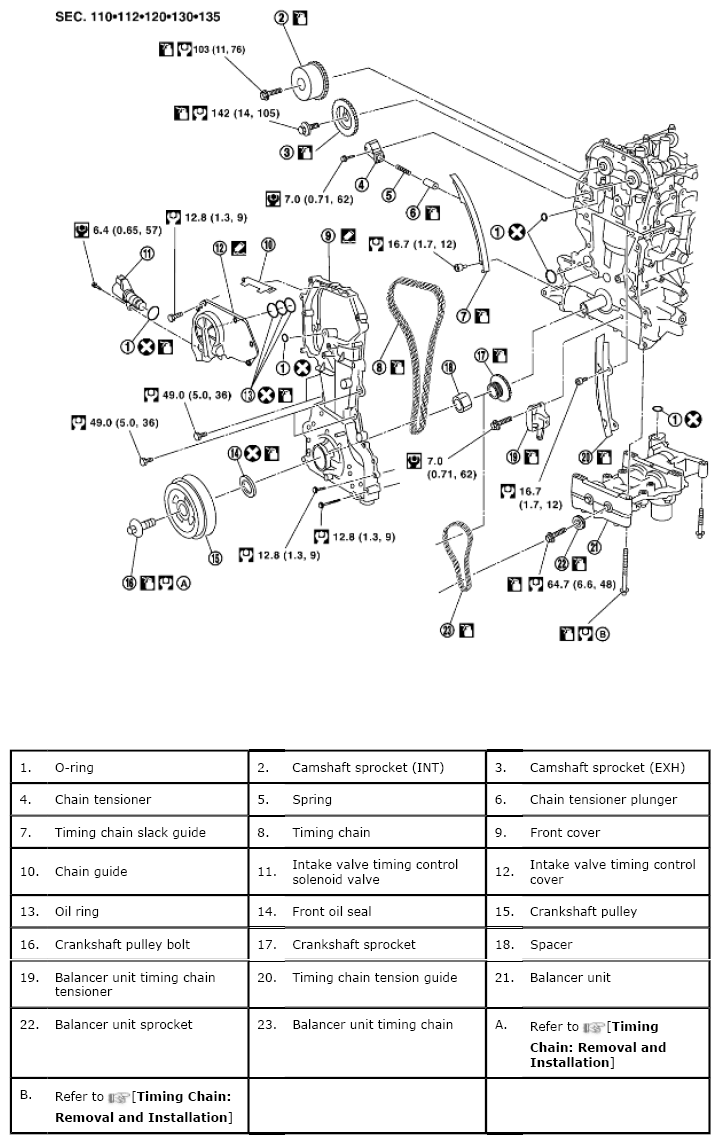

Fig 1: Exploded View Of Timing Chain
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
