Valve Timing

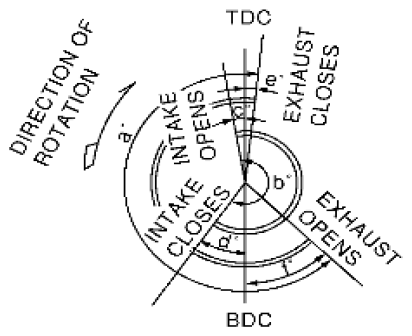

VALVE TIMING REFERENCE CHART

Valve timing
G06440861Courtesy of SUZUKI OF AMERICA CORP.
Unit: degree
a b c d e f
236 224 -4 60 32 37
