Exhaust System: Exploded View

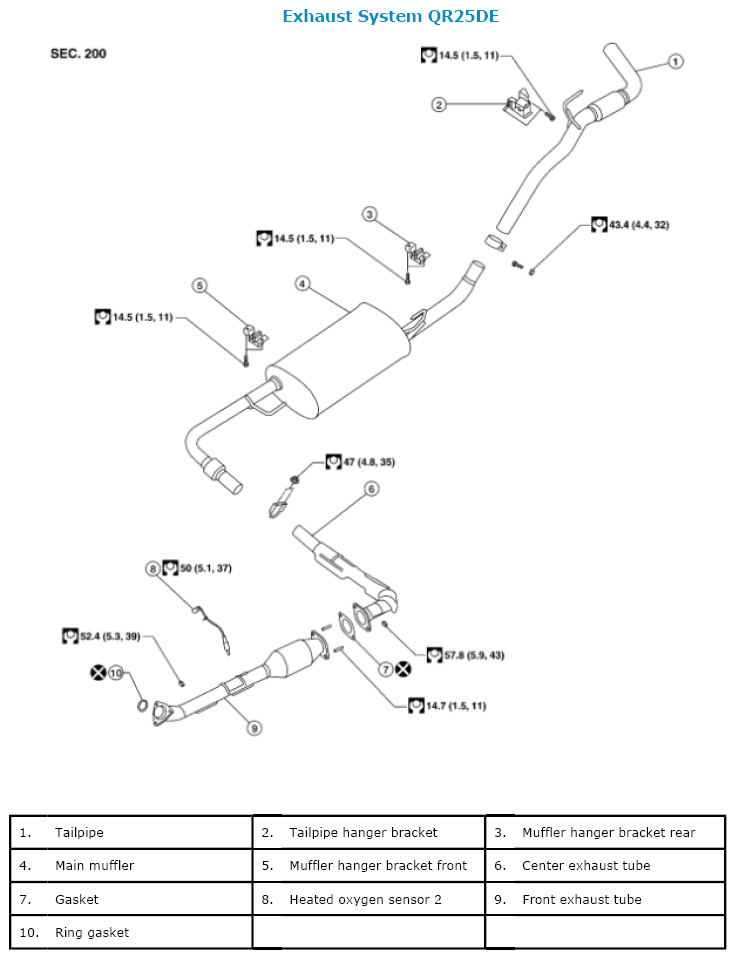

Fig 1: Exploded View Of Exhaust System - QR25DE - With Torque Specifications

Courtesy of SUZUKI OF AMERICA CORP.

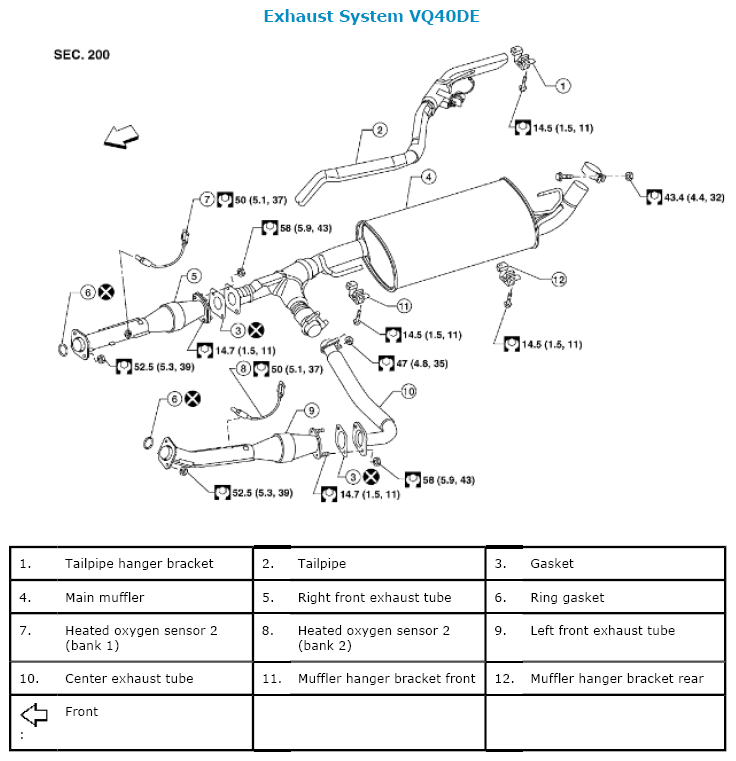

Fig 2: Exploded View Of Exhaust System - VQ40DE - With Torque Specifications

Courtesy of SUZUKI OF AMERICA CORP.
