Fuel Injector and Fuel Tube: Exploded View [QR25DE]
Fuel Injector and Fuel Tube: Exploded View [QR25DE]

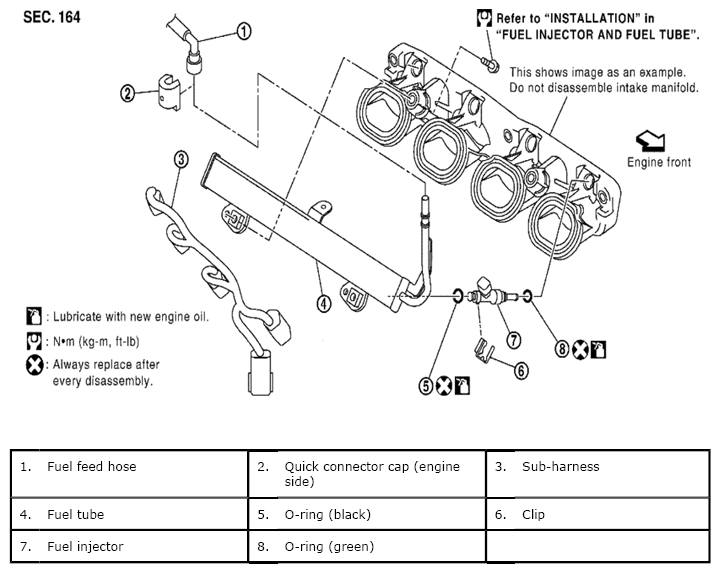

Fig 1: Exploded View Of Fuel Injector And Fuel Tube [QR25DE]
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
