Fuel Injector and Fuel Tube: Exploded View [VQ40DE]
Fuel Injector and Fuel Tube: Exploded View [VQ40DE]

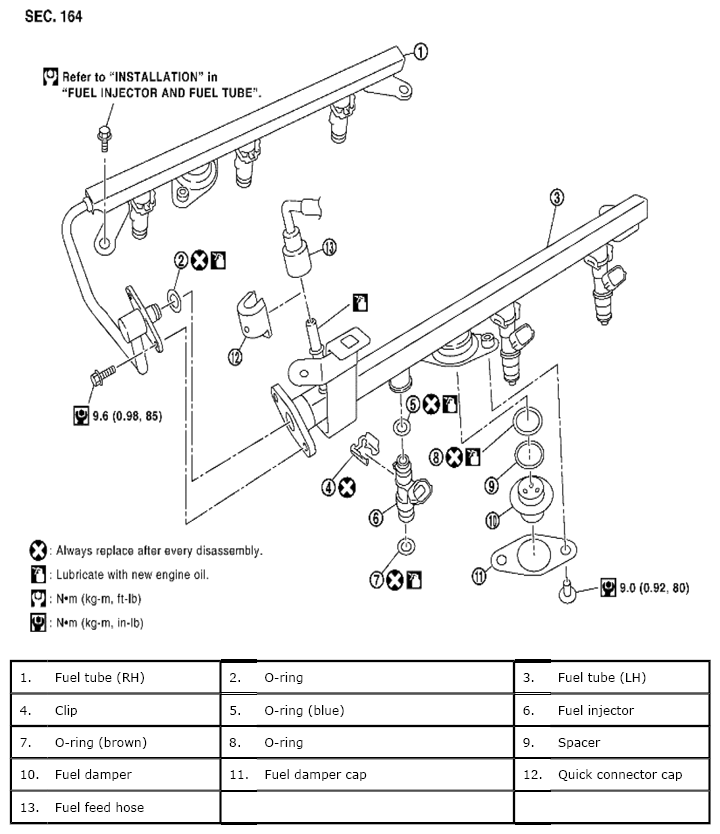

Fig 1: Exploded View Of Fuel Injector And Fuel Tube [VQ40DE]
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
