Ignition Coil: Exploded View
Ignition Coil: Exploded View

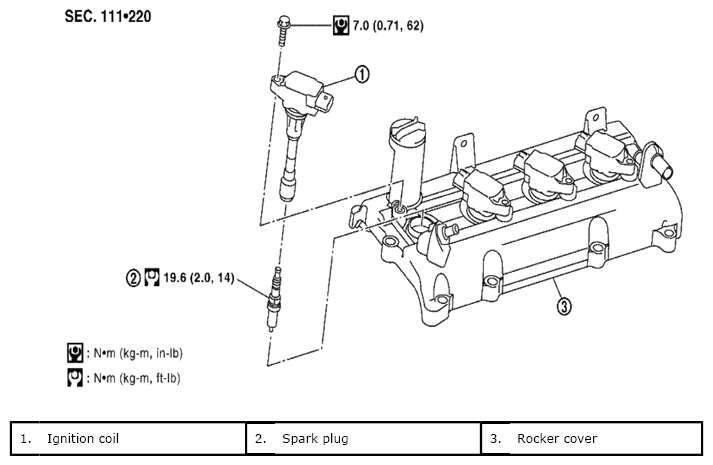

Fig 1: Exploded View Of Ignition Coil With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
