Heated/Cooled Seat Component Views

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

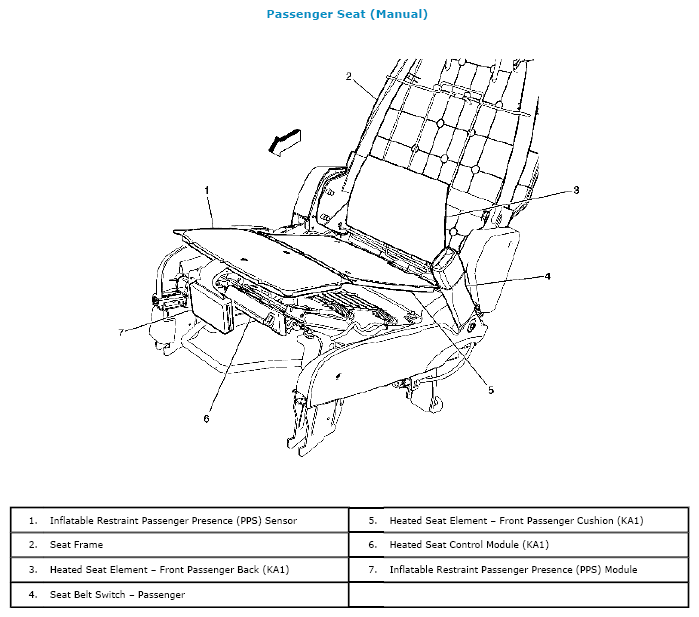

Fig 1: Identifying Passenger Seat (Manual) Components

Courtesy of SUZUKI OF AMERICA CORP.

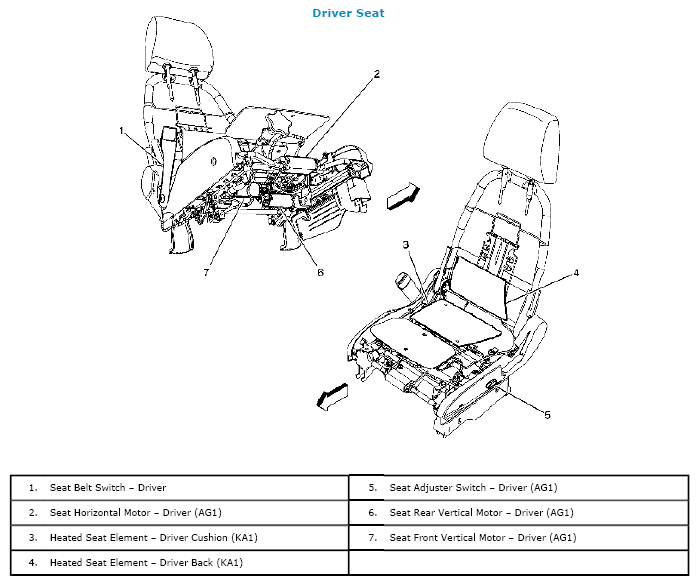

Fig 2: Identifying Driver Seat Components

Courtesy of SUZUKI OF AMERICA CORP.
