Front Bumper Impact Bar Replacement
WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

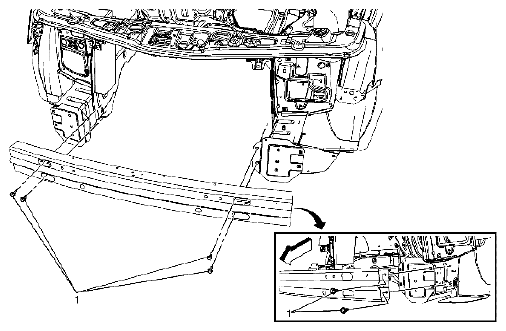

FRONT BUMPER IMPACT BAR COMPONENTS REFERENCE
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front energy absorber. Refer to FRONT BUMPER FASCIA ENERGY ABSORBER REPLACEMENT . |
|
| 1 | Front Bumper Impact Bar Bolts (Qty: 8)
CAUTION:
Refer to FASTENER NOTICE
. Tightening torque 25 N.m (18 lb ft) |
| 2 | Front Bumper Impact Bar |
