Direct Clutch: Disassembly and Assembly: Components

WARNING: This page is about a different variant/trim than selected.

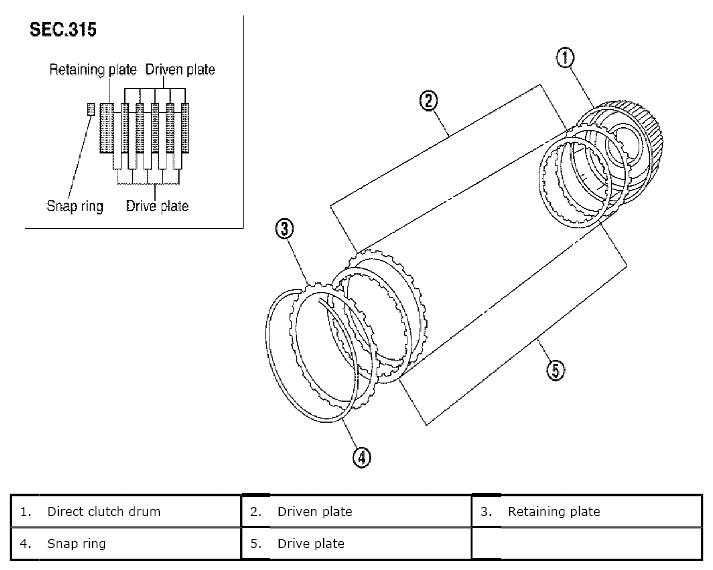

Fig 1: Identifying Direct Clutch Components
G06443062Courtesy of SUZUKI OF AMERICA CORP.
