Direct Clutch: Disassembly and Assembly: Disassembly
WARNING: This page is about a different variant/trim than selected.

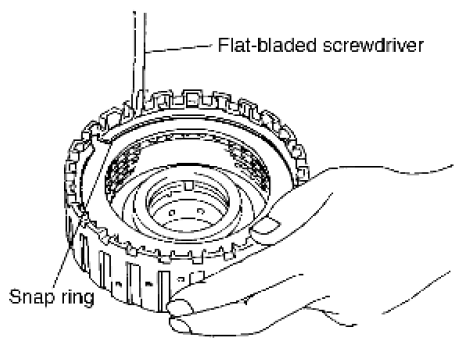

- Remove snap ring from direct clutch drum using suitable tool.
Courtesy of SUZUKI OF AMERICA CORP.
- Remove drive plates, driven plates and retaining plate from direct clutch drum.
