Oil Pump: Exploded View

WARNING: This page is about a different variant/trim than selected.

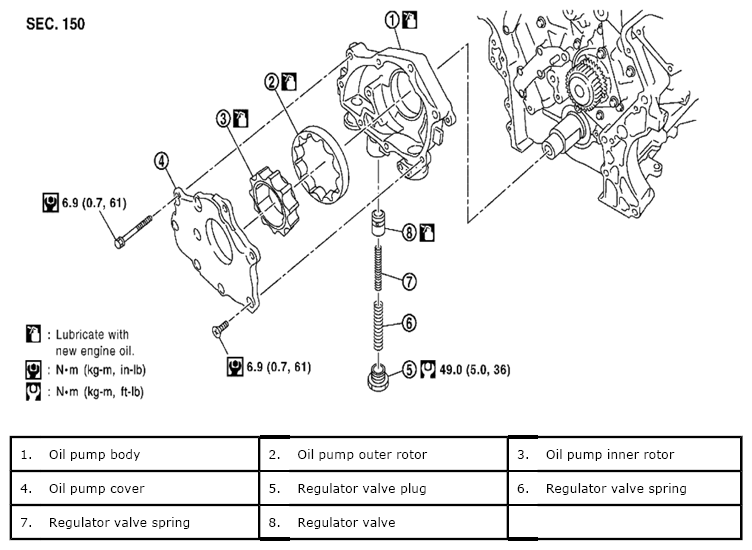

Fig 1: Exploded View Of Oil Pump With Torque Specifications
G06444480Courtesy of SUZUKI OF AMERICA CORP.
