Clutch Pedal: Exploded View
Clutch Pedal: Exploded View

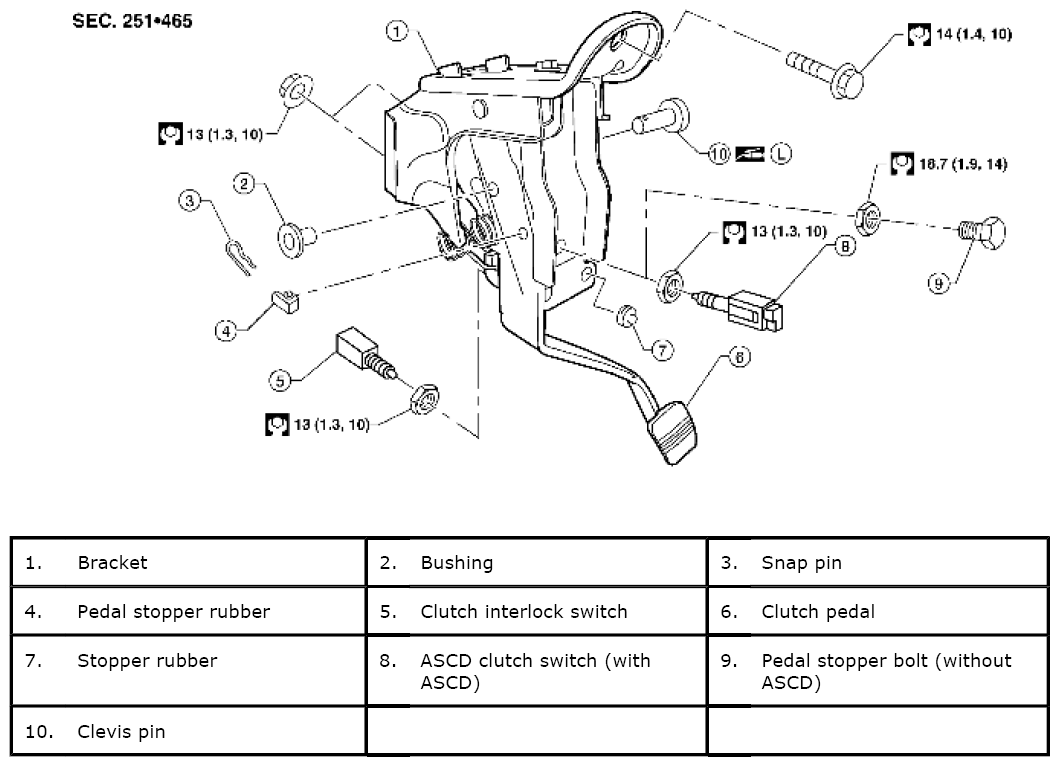

Fig 1: Exploded View Of Clutch Pedal With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
