Clutch Piping: Exploded View
Clutch Piping: Exploded View

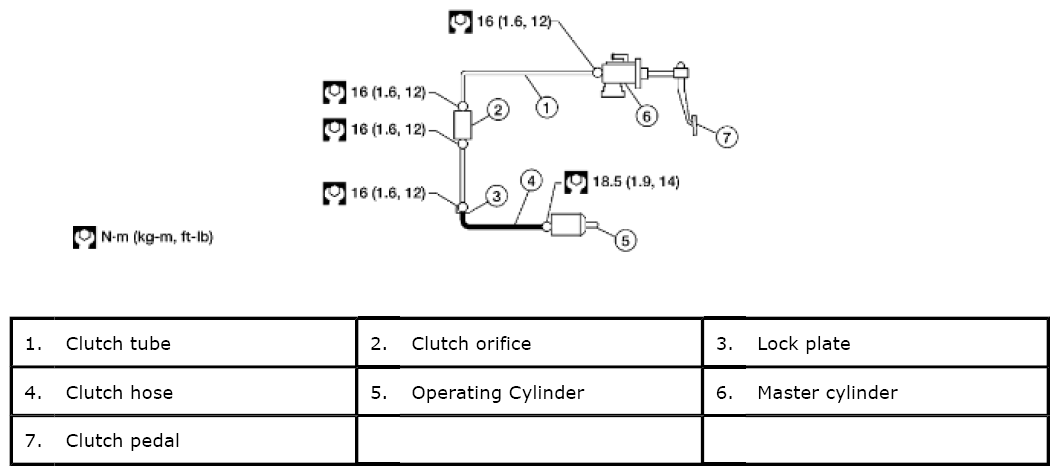

Fig 1: Exploded View Of Clutch Piping With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
